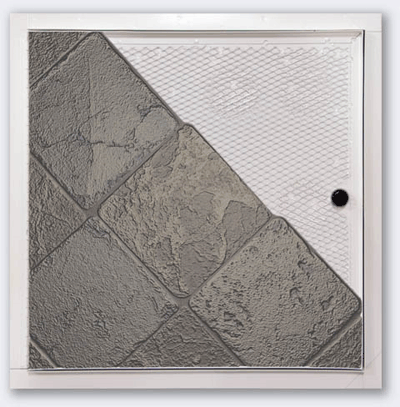

Recessed Fire Rated Access Door For Tile / Access Panel

AcudorThe Acudor FB-5060-TD recessed for tile, fire rated access door is an enhanced FB-5060 designed for use in tiled walls. The door is recessed ½” and is lined with self-furring lath. The Acudor FB-5060 is approved by Underwriters Laboratories (UL) for 1 ½ hours “B” label in walls and ULC for 2 hours “B” label in walls. Designed to maintain continuity in a 2-hour fire barrier wall, the FB-5060 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor.

  • Designed for use in tiled walls
  • Used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor
  • Recessed ½” and is lined with self-furring lath
  • Designed to maintain continuity in a 2-hour fire barrier wall
  • Self closing
  • Self latching
  • Inside latch release
Model No. Door Size W x H Opening W x H Latch Price *
FB-5060-TD 12x12 12-3/8x12-3/8 1 $171.99
FB-5060-TD 16x16 16-3/8x16-3/8 1 $236.99
FB-5060-TD 18x18 18-3/8x18-3/8 1 $241.99
FB-5060-TD 24x24 24-3/8x24-3/8 1 $303.99
FB-5060-TD 24x36 24-3/8x36-3/8 1 $456.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
2 hour ULC rating for walls (AD2H) $15.99

Qty.

Specifications:
  • For Walls
  • Door: Steel: 16 gauge door with reinforced edges, door panel recessed 1/2” and lined with self-furring lath.
  • Frame: Steel: 16 gauge mounting frame
  • Hinge: Continuous exposed piano hinge
  • Fire Rating: UL — 1-1/2 hour "B" label. ULC — 2 hour "B" label.(optional) Max size 36 x 48
  • Latch: Universal self-latching bolt, operated by either a knurled knob or flush key. When master keying is required, doors can be prepared for rim or mortise cylinder locks.
  • Finish: 5 stage iron phosphate preparation with
    prime coat of White alkyd baked-on enamel

Uninsulated Fire Rated Access Door for Tile
