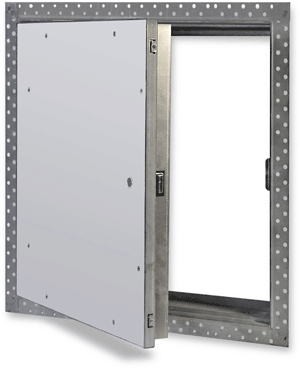

Recessed Fire Rated Access Door / Access Panel

AcudorThe Acudor FW-5015 meets 1-1/2 hour fire rating requirement
in accordance with Underwriters Laboratories UL 10(b) and CAN/ULC S104-10 for max size up to 24” x 36”. Designed to maintain continuity in a 2 hour fire barrier wall, the FW-5015 should be used whenever it is necessary to provide access in fire rated walls, when temperature rise is not a factor. For installation in drywall walls requiring concealing of the door panel consistent to surrounding walls.


Standard Features:
  • Recessed reinforced door fitted with 5/8” drywall.
  • Concealed hinge, Self-closing, Self-latching
  • Inside latch release
  • Frame flange with pre-punched holes and textured for convenient mounting and accepting skim coat finish.
Model No. Door Size W x H Opening W x H Latch Price *
FW-5015 12x12 12-3/8x12-3/8 1 $129.99
FW-5015 16x16 16-3/8x16-3/8 1 $145.99
FW-5015 18x18 18-3/8x18-3/8 1 $164.99
FW-5015 24x24 24-3/8x24-3/8 1 $199.99
FW-5015 24x36 24-3/8x36-3/8 2 $262.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Rim Cylinder Lock (ADRCL) $39.99
Qty.

Specifications:
  • For Walls
  • Door: Steel-22 Gauge recessed fitted with 5/8” thick drywall suitable to accept skim coat finish on site.
  • Door Frame: Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site.
  • Hinge: Concealed.
  • Latch: Universal self-latching bolt, operated by flush key.
  • Finish: Satin coat steel.
  • Rating: Meets 1-1/2 hour fire rating requirement
    in accordance with Underwriters Laboratories UL 10(b) and CAN/ULC S104-10 for max size up to 24” x 36”.

Uninsulated Fire Rated Access Door
See also:
Fire Stopping Sealants - Fire Stopping Sealants - Recommended for fire rated applications
Foam Sealants - Expanding Foam Sealants
Fire Extinguisher Cabinets - Protect your Fire Fxtinguisher
