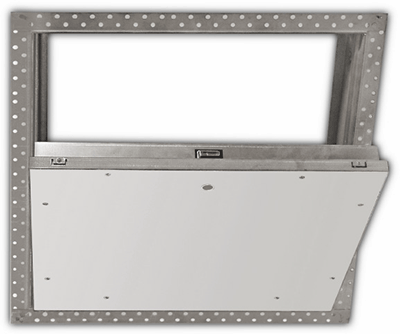

Recessed Fire Rated Access Door / Access Panel

AcudorThe Acudor FW-5015 meets 3 hour fire rating requirement. For installation in drywall ceilings requiring concealing of the door panel consistent to surroundings. For use in Fire Rated Ceilings that needs tested and certified doors having Fire Resistance Rating of 90 minutes.


Standard Features:

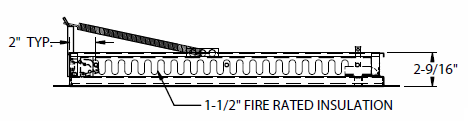

  • Recessed reinforced insulated door fitted with 5/8” Fire-rated drywall.
  • Concealed hinge & self-centering device ensures seamless appearance in ceiling
  • Self-closing & self-latching door mechanism
  • Perforated Frame ensures trouble-free application of skim coat to edge of the door
  • Zinc coated steel provides superior corrosion resistance
  • Testing Standards – CAN ULC S101-14, ASTM E119-16 and NFPA 251
Model No. Door Size W x H Opening W x H Latch Price *
FWC-5015 12x12 12-3/8x12-3/8 1 $168.99
FWC-5015 16x16 16-3/8x16-3/8 1 $211.99
FWC-5015 18x18 18-3/8x18-3/8 1 $223.99
FWC-5015 24x24 24-3/8x24-3/8 1 $265.99
FWC-5015 24x36 24-3/8x36-3/8 2 $386.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Rim Cylinder Lock (ADRCL) $39.99
Qty.

Specifications:
  • For Ceilings
  • Door: Steel-22 Gauge recessed fitted with 5/8” thick drywall suitable to accept skim coat finish on site.
  • Door Frame: Steel-22 Gauge press bent for strength and rigidity with pre-punched flanges for convenient mounting and accepting skim coat finish on site
  • Hinge: Concealed
  • Fire Rating (Ceilings): Meets 90 minutes Fire Resistance Rating in accordance with CAN ULC S101-14, ASTM E119-16 and NFPA 251
  • Latch: Self-latching bolt, operated by flush key
  • Finish: Satin coat steel

Uninsulated Fire Rated Access Door
