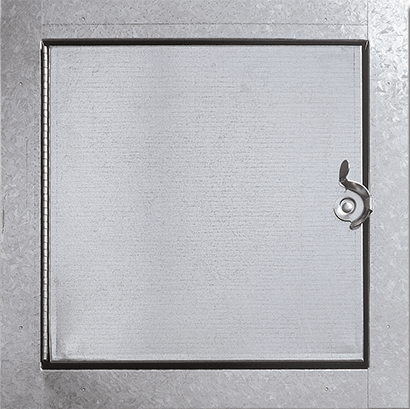

Self Stick Duct Access Door / Access Panel

AcudorAcudor Duct Access Doors for Ductboard/Fiberglass Ducts are designed to provide convenient, economical access to fiberglass ducts. These doors are for use in fiberglass ducs with low to medium pressure up to 3" static W.G.
Model No. Door Size W x H Duct Opening Latches Price *
HD-5070-F 6x6 6X6 1 $16.99
HD-5070-F 8x8 8X8 1 $17.99
HD-5070-F 10x10 10X10 1 $18.99
HD-5070-F 12x12 12X12 1 $20.99
HD-5070-F 14x14 14X14 2 $23.99
HD-5070-F 16x16 16X16 2 $28.99
HD-5070-F 18x18 18X18 2 $34.99
HD-5070-F 20x20 20X20 2 $48.99
HD-5070-F 24x24 24X24 2 $50.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Cylinder Lock (ADCL) $11.99

Qty.

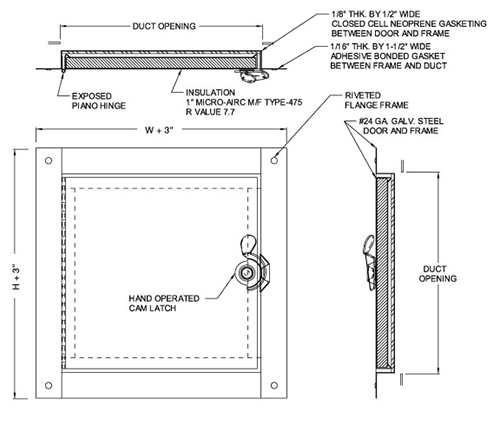

Specifications:
  • Door: 24 Gauge Galvanized Steel, double panel
  • Frame: 24 gauge galvanized steel
  • Hinge: Continuous aluminum piano hinge
  • Insulation: Insulation 1" Micro-AIRC M/F TYPE-475 R value 7.7
  • Gasketing:1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and 1/16" thick by 1-1/2" adhesive bonded gasket between frame to duct
  • Latch: Self tightening, hand operated cam latches

Self Stick Duct Access Door
