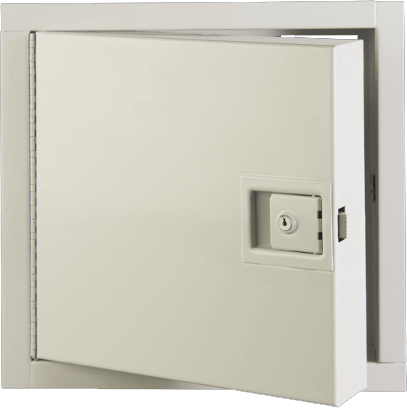

Universal Stainless Steel Fire Rated Access Door / Access Panel

Karp

The KRP-150FR with stainless steel finish is flush mounted, with both anchor straps and mounting holes to facilitate installation. The KRP-150FR is insulated and rated by Underwriters Laboratories for 1.5 hour "B" label in walls and by Warnock Hersey for 3 hours in ceilings. Listed below are standard sizes, other sizes are available.

Model No. Door Size H x W Opening H x W Stud Catches / Latches Price *
KRP-150FR-SS 12X12 12 3/8X12 3/8 1 $197.99
KRP-150FR-SS 16X16 16 3/8X16 3/8 1 $265.99
KRP-150FR-SS 18X18 18 3/8X18 3/8 1 $290.99
KRP-150FR-SS 24X24 24 3/8X24 3/8 1 $347.99
KRP-150FR-SS 36X24 36 3/8X24 3/8 2 $472.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation Instructions here

Request a Quote



Available Options:
Gasketing (KPG) $34.99
Qty.

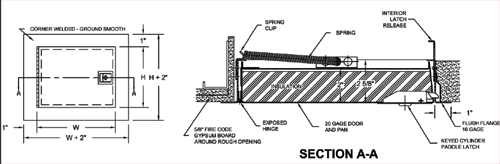

Specifications:
  • For Walls and Ceilings (Max. 36X24 for Ceilings)
  • For all surfaces
  • Frame: 16 gauge steel and 1 inch wide.
  • Door: 20 gauge steel, welded pan type filled with 2" thick fire-rated insulation and opens to 175°. The door is self-latching with automatic closer and interior latch release.
  • Hinge: Continuous piano hinge.
  • Finish: #4 Satin Stainless Steel


Universal Fire Rated Access Door
