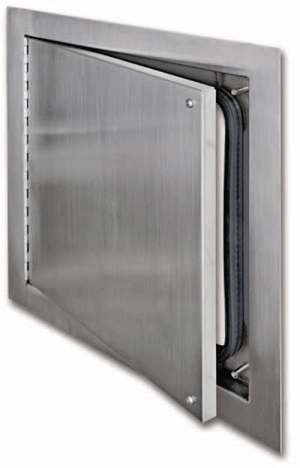

Airtight/Watertight Access Door / Access Panel

AcudorThe Acudor ADWT is a flush stainless steel access door that has been tested for air infiltration and water penetration. The Door and frame are fully welded and gasketed. This access door is ideal for use in laboratories, clean rooms, operating rooms, etc. where an airtight/watertight seal is required. Standard in type 304 stainless steel with a #4 satin polish. Prime coated Steel is also available.

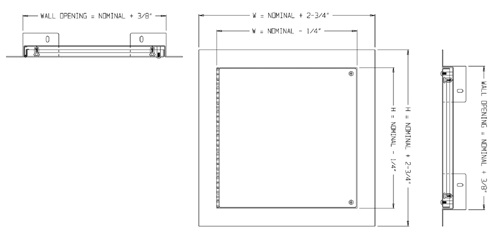

Model No. Door Size W x H Opening W x H Price *
ADWT-SS 12x12 12-3/8x12-3/8 $317.99
ADWT-SS 14x14 14-3/8x14-3/8 $331.99
ADWT-SS 18x18 18-3/8x18-3/8 $399.99
ADWT-SS 24x24 24-3/8x24-3/8 $486.99
ADWT-SS 24x36 24-3/8x36-3/8 $625.99
ADWT-SS 30x30 30-3/8x30-3/8 $659.99
ADWT-SS 30x48 30-3/8x48-3/8 $919.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the installation instructions here

Request a Quote




Available Options: (will increase the lead time to 4 weeks, not returnable)
Cylinder Lock (ADWT-LOCK) $92.99

Qty.

Specifications:
  • For Walls and Ceilings
  • Door and Frame fully welded
  • Continuous Bulb Trim Gasket
  • Continuous Stainless Steel Piano Hinge
  • Air Infiltration : less than 0.01 cfm/sq foot – ASTM E 283
  • Water Penetration : no leakage at 15.05 psf – ASTM E 331
  • Material: Stainless Steel – 16 gauge door; 16 gauge mounting frame
  • Door: Flush to frame with reinforced edges
  • Hinge: Continuous exposed stainless steel piano hinge
  • Gasket: Continuous Bulb Trim Seal
  • Latch: Stainless Steel phillips head screws standard.
  • Finish: Stainless Steel ; #4 satin polish

Airtight / Watertight Access Door
