Aluminum Access Door / Access Panel

AcudorThe Acudor LT-4000 is a lightweight aluminum access door for walls and ceilings. With a durable design and lightweight components, access to large
openings in walls and ceilings is made easy. The mitered aluminum frame provides an architecturally pleasing appearance. The aluminum door panel is lined with 3/4" polystyrene insulation. The all aluminum construction of the LT-4000 is ideal for exterior applications, and also those specific interior applications where corrosion or moisture is a concern. Gasketing between the door and frame to insure an airtight fit is included.

Model No. Door Size W x H Opening W x H Latch Price *
LT-4000 8x8 8-1/2x8-1/2 1 $78.99
LT-4000 10x10 10-1/2x10-1/2 1 $85.99
LT-4000 12x12 12-1/2x12-1/2 1 $87.99
LT-4000 14x14 14-1/2x14-1/2 1 $99.99
LT-4000 16x16 16-1/2x16-1/2 1 $109.99
LT-4000 18x18 18-1/2x18-1/2 1 $111.99
LT-4000 24x24 24-1/2x24-1/2 1 $126.99
LT-4000 24x36 24-1/2x36-1/2 2 $184.99
LT-4000 24x48 24-1/2x48-1/2 2 $226.99
LT-4000 30x30 30-1/2x30-1/2 2 $188.99
LT-4000 36x36 36-1/2x36-1/2 2 $206.99
LT-4000 36x48 36-1/2x48-1/2 2 $256.99
LT-4000 48x48** 48-1/2x48-1/2 4 $451.99
LT-4000 60x48** 60-1/2x48-1/2 4 $483.99
LT-4000 72x48** 72-1/2x48-1/2 4 $540.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options: (one of each, non-returnable if selecting any options below)
Cylinder Lock (ADCL) $12.99
Quarter turn knob latch (ADQTKL) $12.99
Rim Cylinder Lock (ADRCL) $39.99


Qty.

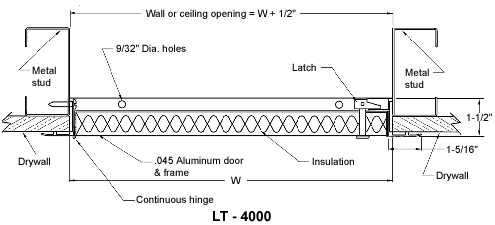

Specifications:
  • For Walls and Ceilings
  • Material: Aluminum: .064 door and .080 frame
  • Door: Flush to edge of frame
  • Frame: 1-5/16” mitered aluminum extrusion flange with 1-1/2” deep mounting frame
  • Hinge: Doors with width 24” or less to have concealed pin hinge. Doors with width over 24” to have continuous aluminum piano hinge with exposed knuckle, set to open to 180 degrees
  • Insulation: 3/4” polystyrene insulation, with 4.0 r-value at 75 degrees F mean temperature
  • Gasketing: 1/8” x 3/8” closed cell neoprene gasketing
  • Latch: Screwdriver operated cam latch. Also available: cylinder lock & key
  • Finish: Mill finish


Aluminum Access Door
