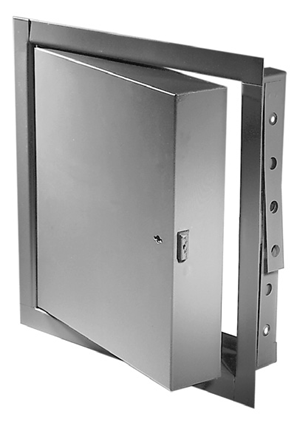

Fire Rated Access Door / Access Panel

AcudorThe Acudor FW-5050 is a fire rated access door approved for use in walls and ceilings. For walls, this door has a Underwriters Laboratories
(UL and ULC), 1-1/2 hour "B" label, with a maximum temperature rise of
250 degrees after 30 minutes. This door should be used in walls when temperature rise or heat transmission is a factor.
For fire rated ceilings, this door has been approved by Warnock Hersey International for 3 hours (max. size to 24" x 36").
For drywall applications, this door is available (FW-5050-DW) with a galvanized steel drywall taping bead flange.

Standard Features:
  • Insulated Door Panel
  • Concealed Hinge
  • Self-Closing
  • Self Latching
  • Inside Latch Release
Model No. Door Size W x H Opening W x H Latch Price *
FW-5050 8x8 8-3/8x8-3/8 1 $121.99
FW-5050 10x10 10-3/8x10-3/8 1 $123.99
FW-5050 12x12 12-3/8x12-3/8 1 $127.99
FW-5050 14x14 14-3/8x14-3/8 1 $152.99
FW-5050 16x16 16-3/8x16-3/8 1 $159.99
FW-5050 18x18 18-3/8x18-3/8 1 $164.99
FW-5050 22x30 22-3/8x30-3/8 1 $221.99
FW-5050 22x36 22-3/8x36-3/8 2 $288.99
FW-5050 24x24 24-3/8x24-3/8 1 $200.99
FW-5050 24x30 24-3/8x30-3/8 2 $261.99
FW-5050 24x36 24-3/8x36-3/8 2 $286.99
FW-5050 24x48 24-3/8x48-3/8 2 $323.99
FW-5050 30x30 30-3/8x30-3/8 2 $302.99
FW-5050 36x36 36-3/8x36-3/8 2 $390.99
FW-5050 36x48 36-3/8x48-3/8 2 $452.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Installation Instructions

Request a Quote




Available Options:
Mortise Prep.* (ADMP) $58.99
Gal. Steel Drywall Bead Flange (DW) $22.99
Gasketing (ADG) $24.99
2 hour ULC rating for walls (AD2H) $15.99

Qty.

* Mortise Cylinder not supplied



Specifications:
  • For Walls and Ceilings
  • Material: Steel or Stainless Steel: 20 gauge door,16 gauge mounting frame.
  • Door: Filled with 2" thick fire rated insulation.
  • Frame: Flange to be 1" wide, mounting frame to have anchor straps.
  • Hinge: Concealed
  • Latch: Universal self-latching bolt, operated by either a knurled knob or
    flush key. When master keying is required, doors can be prepared for mortise cylinder locks.
  • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked enamel.

Fire Rated Access Door
