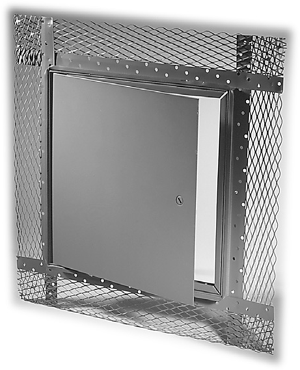

Flush Plaster Access Door / Access Panel

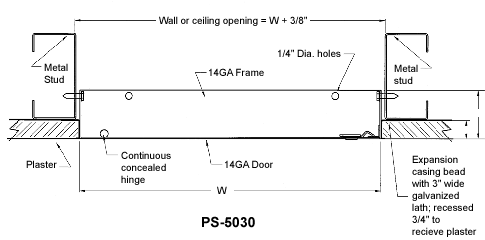

AcudorThe Acudor PS-5030 is designed for installation in plaster walls and ceilings, before the plaster is applied. An expansion casing bead with 3” wide galvanized lath, included as part of the frame, provides a clean, tight finish between the frame and plaster and also adds reinforcement.
The door panel is finished flush with the plaster. Our unique concealed continuous hinge and
screwdriver operated cam latches allow the door panel to operate freely with no binding,
sagging or distortion.

Model No. Door Size W x H Opening W x H Latch Price *
PS-5030 8x8 8-3/8x8-3/8 1 $30.99
PS-5030 10x10 10-3/8x10-3/8 1 $35.99
PS-5030 12x12 12-3/8x12-3/8 1 $37.99
PS-5030 14x14 14-3/8x14-3/8 1 $40.99
PS-5030 16x16 16-3/8 x16-3/8 2 $44.99
PS-5030 18x18 18-3/8x18-3/8 2 $49.99
PS-5030 22x22 22-3/8x22-3/8 4 $62.99
PS-5030 24x24 24-3/8x24-3/8 4 $68.99
PS-5030 24x36 24-3/8x36-3/8 5 $98.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Cylinder Lock (ADCL) $11.99

Qty.

Specifications:
  • For Walls and Ceilings
  • Material: Steel or Stainless Steel: 14 gauge door, 14 gauge mounting frame
  • Door: Flush to edge of frame
  • Frame: Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster
  • Hinge: Continuous, concealed
  • Latch: Stainless steel screwdriver operated cam latch. Also available: cylinder lock & key, allen head cam latch, spanner head cam latch.
  • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked enamel.

Flush Plaster Access Door
