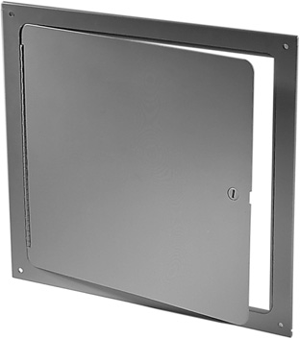

Surface Mounted Access Door / Access Panel

AcudorThe Acudor SF-2000 is an innovative surface mounted access door for all types of walls and ceilings. The door panel features rounded safety corners providing an architecturally pleasing appearance. An exposed continuous piano hinge allows the door panel to open to 175 degrees. The SF-2000 is the ideal choice for all applications. The mounting holes in each corner of the frame allow for easy installation. Since there is no frame to extend into the wall or ceiling, the SF-2000 is perfect for access to odd size openings.

Model No. Door Size W x H Opening W x H Latch Price *
SF-2000 8x8 7-3/4x7-3/4 1 $26.99
SF-2000 12x12 11-3/4x11-3/4 1 $28.99
SF-2000 16x16 15-3/4x15-3/4 2 $39.99
SF-2000 24x24 23-3/4x23-3/4 4 $59.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Cylinder Lock (ADCL) $11.99
Quarter turn knob latch (ADQTKL) $11.99

Qty.

Specifications:
  • For Walls and Ceilings
  • Material: Steel 16 gauge.
  • Door: Flush to frame — rounded safety corners.
  • Frame: One piece outer flange.
  • Hinge: Exposed continuous piano hinge.
  • Latch: Stainless steel screwdriver operated cam latch. Also available: cylinder lock & key, allen head cam latch, spanner head cam latch.
  • Finish: Steel: 5 stage iron phosphate preparation with
    prime coat of white baked enamel.

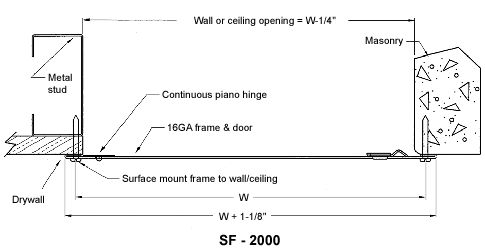

Surface Mounted Access Door
