Universal Access Door / Access Panel

Acudor The Acudor UF-5000 is an innovative universal flush access door for walls and ceilings. It is designed for installation in drywall, plaster, masonry, tile or any flush surface.
The door panel features rounded safety corners which provide an architecturally pleasing appearance. The one piece trim flange will not rack, sag or distort.
The unique continuous concealed hinge will not bind or corrode, allowing the door to operate freely time and time again. For easy installation, the mounting frame is 1-1/4” deep, giving maximum clearance behind the door frame.
Model No. Door Size W x H Opening W x H Latch Price *
UF-5000 6x6 6-3/8x6-3/8 1 $17.99
UF-5000 8x8 8-3/8x8-3/8 1 $19.99
UF-5000 8x12 8-3/8x12-3/8 1 $23.99
UF-5000 10x10 10-3/8x10-3/8 1 $23.99
UF-5000 12x12 12-3/8x12-3/8 1 $24.99
UF-5000 12x16 12-3/8x16-3/8 2 $31.99
UF-5000 12x18 12-3/8x18-3/8 2 $33.99
UF-5000 12x24 12-3/8x24-3/8 2 $37.99
UF-5000 14x14 14-3/8x14-3/8 1 $30.99
UF-5000 16x16 16-3/8x16-3/8 2 $33.99
UF-5000 16x24 16-3/8x24-3/8 2 $46.99
UF-5000 18x18 18-3/8x18-3/8 2 $36.99
UF-5000 18x24 18-3/8x24-3/8 2 $48.99
UF-5000 22x22 22-3/8x22-3/8 4 $50.99
UF-5000 22x30 22-3/8x30-3/8 5 $82.99
UF-5000 22x36 22-3/8x36-3/8 5 $85.99
UF-5000 24x24 24-3/8x24-3/8 4 $51.99
UF-5000 24x30 24-3/8x30-3/8 5 $83.99
UF-5000 24x36 24-3/8x36-3/8 5 $87.99
UF-5000 24x48 24-3/8x48-3/8 5 $156.99
UF-5000 30x30 30-3/8x30-3/8 5 $96.99
UF-5000 36x36 36-3/8x36-3/8 5 $116.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Comes with Screw Driver Latches
Available Options: (one of each, non-returnable if selecting any options below)
Standard Cylinder Lock (ADSCL) $11.99
Quarter turn knob latch (ADQTKL) $11.99
Spanner head cam latch (ADSHCL) $11.99

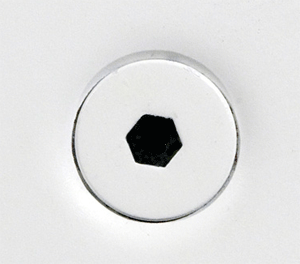

Allen head cam latch (ADAHC) $11.99

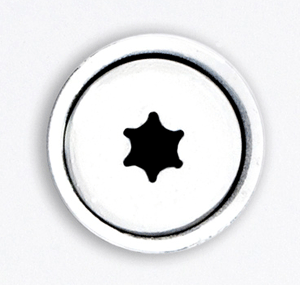

Torx head cam latch (ADTHC) $11.99
Rim Cylinder Lock (ADRCL) $39.99

Removable Panel (ADRP) ** $14.99
** Add one week lead time, Modified hinge, must open door about 2", then door slides off hinge

Qty.


Specifications:
  • For Walls and Ceilings
  • Material: 16" x 16" and smaller: 16 gauge door, 18 gauge mounting frame.
    Over 16" x 16": 14 gauge door, 16 gauge mounting frame.
  • Door: Flush to frame — rounded safety corners.
  • Frame: One piece outer flange welded to mounting frame.
  • Hinge: Continuous, concealed.
  • Latch: Stainless steel screwdriver operated cam latch.
  • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked enamel.
    Also available in #4 Satin Stainless Steel

Universal Access Door
