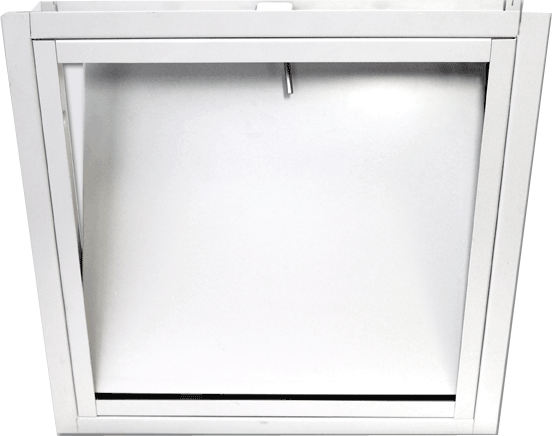

UPSWING Fire Rated Access Door / Access Panel

AcudorThe Acudor FW-5050-UP is a fire rated inward opening access door approved for use in ceilings. This door has been approved by Warnock Hersey International for 3 hours

Standard Features:
  • Insulated Door Panel
  • Concealed Hinge
  • Self-Closing
  • Self Latching
  • Inside Latch Release
Model No. Door Size W x H Opening W x H Latch Price *
FW-5050-UP 24x24 24-1/2x24-1/2 1 $696.99
FW-5050-UP 22x30 22-1/2x30-1/2 2 $1,028.99
FW-5050-UP 22x36 22-1/2x36-1/2 2 $1,027.99
FW-5050-UP 24x36 24-1/2x36-1/2 2 $1,065.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote



Qty.

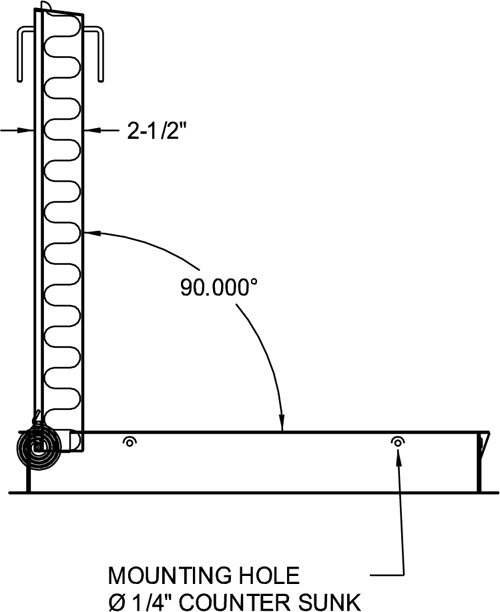

Specifications:
  • For Ceilings
  • Material: Steel or Stainless Steel: 16 gauge door,16 gauge mounting frame.
  • Door: Flush to edge of frame.
  • Frame: Expansion casing bead with 3" wide galvanized lath, recessed 3/4" to receive plaster.
  • Hinge: Continuous, concealed.
  • Latch: Universal self latching bolt, operated by "L-Handle" on both sides. Also available: cylinder lock and key, allen head cam latch, spanner head cam latch.
  • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked enamel.

Fire Rated Access Door
