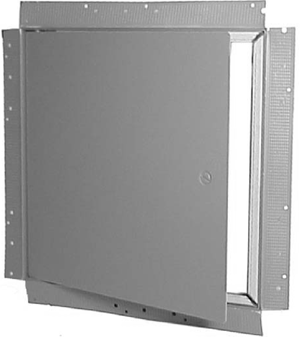

Drywall Bead Access Door / Access Panel

Elmdor

Elmdor/Stoneman

Doors are designed for flush installation in dry wall surfaces. Door features a concealed hinge that prevents distortion and closes door squarely.

Model No. Door Size W x H Wall Opening W x H Cam Latch Price *
DWB 8x8 8 1/4 x 8 1/4 1 $28.99
DWB 10x10 10 1/4 x 10 1/4 1 $30.99
DWB 12x12 12 1/4 x 12 1/4 1 $32.99
DWB 14x14 14 1/4 x 14 1/4 1 $35.99
DWB 16x16 16 1/4 x 16 1/4 1 $40.99
DWB 18x18 18 1/4 x 18 1/4 3 $47.99
DWB 22x22 22 1/4 x 22 1/4 3 $69.99
DWB 24x24 24 1/4 x 24 1/4 3 $79.99
DWB 24x36 24 1/4 x 36 1/4 6 $107.99
DWB 30x30 30 1/4 x 30 1/4 7 $116.99
DWB 36x36 36 1/4 x 36 1/4 8 $138.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Standard Cylinder Lock (ELSCL) $4.99

Qty.

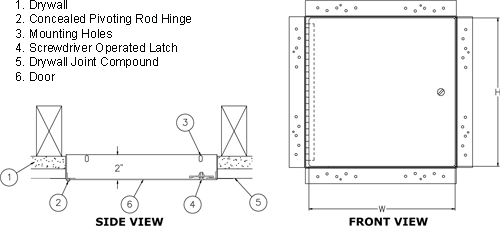

Specifications:
  • For Walls and Ceilings
  • Door & Frame: 16 ga. galvannealed steel.
  • Frame: 1/4" mounting holes positioned to allow anchoring directly to studs to assure a secure mounting. A drywall bead on the frame allows the drywall joint compound to be applied over the bead at the same time as the joints and corners.
  • Flange: Prepunched holes to provide grip for the joint compound and facilitate fastening the flange to framing members with drywall screws.
  • Finish: Prime coat suitable for painting
  • Hinge: Concealed Pivoting Rod Hinge prevents distortion and closes door squarely. Doors 24" or larger are provided with a continuous piano hinge.
  • Latches: Screwdriver

DWB Access Door
