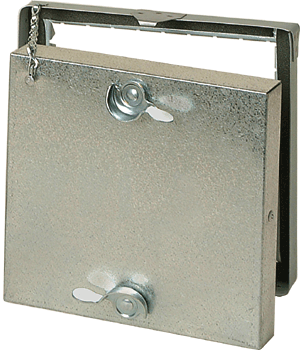

True Fit Duct Access Panel / Access Panel

Williams Brothers This convenient, economical access door is easy to install with notched edges, to provide for a quick and simple installation. Doors are available in either hinged or double cam construction (item is union labeled)
Model No. Door Size W x H Frame Neck O.D. W x H Cam Latch Price *
ADC 1400 6x6 4 7/8 x 4 7/8 2 $16.99
ADC 1400 8x8 6 7/8 x 6 7/8 2 $17.99
ADC 1400 10x10 8 7/8 x 8 7/8 2 $18.99
ADC 1400 12x12 10 7/8 x 10 7/8 2 $20.99
ADC 1400 14x14 12 7/8 x 12 7/8 2 $24.99
ADC 1400 16x16 14 7/8 x 14 7/8 4 $30.99
ADC 1400 18x18 16 7/8 x 16 7/8 4 $34.99
ADC 1400 24x24 22 7/8 x 22 7/8 4 $48.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote





Qty.

Specifications:
  • Frame: Die formed 22 ga. flanged frame.
    Die formed 24 ga. door
  • Door: 22 ga. steel. Double wall construction
  • Cam: Double
  • Latch: Cam latches
  • Finish: Mill finish.
  • Gasketing: Polyester open celled foam
  • Insulation: 1" fiberglass insulation

Duct Access Door
