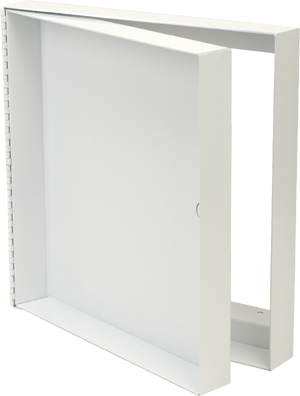

Fire-Resistive Ceiling Access Door / Access Panel

Williams Brothers To provide access in a suspended drywall ceiling application that forms part of a fire resistive floor-ceiling assembly. The offset design of the return frame along with a recessed panel to receive double layers of drywall keeps the continuity of the fire resistive quality.
Model No. Door Size W x H Wall Opening W x H Cam Latch Price *
ATR 610 12x12 12 3/4 x 12 3/4 1 $96.99
ATR 610 18x18 16 3/4 x 16 3/4 1 $111.99
ATR 610 24x24 22 3/4 x 22 3/4 3 $137.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote



Available Options:
Long Barrel Cylinder Lock (SFLBCL) $19.99
Gasketing (SFG) $34.99

Qty.

Specifications:
  • For Ceilings Only
  • Door: 16 ga. steel recessed 1 1/2"
  • Frame: 16 ga. steel, hat channel type shape
  • Hinge: Continuous piano hinge opens 180º
  • Latches: Flush stainless steel cam latch
  • Finish: White baked enamel coat

Fire-Resistive Ceiling Access Door
