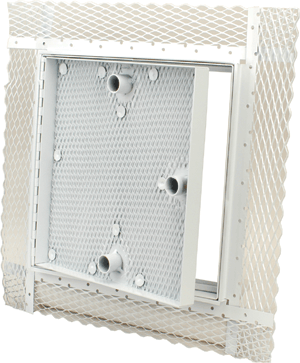

Recessed Plaster Access Door / Access Panel

Williams Brothers A precision door that provides a virtually concealed installation, keeping acoustical surfaces intact while contributing to sound control and better appearance. Door panels are recessed to receive plaster up to I" thick. Plaster covering the door finishes flush with the surrounding field, leaving only the narrow frame edges exposed.
Model No. Door Size W x H Wall Opening W x H Cam Latch Price *
AP 510 12x12 12 1/4 x 12 1/4 3 $95.99
AP 510 18x18 18 1/4 x 18 1/4 3 $142.99
AP 510 24x24 24 1/4 x 24 1/4 3 $182.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote



Available Options:
Medium Barrel Cylinder Lock (SFMBCL) $12.99
Gasketing (SFG) $26.99

Qty.

Specifications:
  • For Walls and Ceilings
  • Door: 14 ga. steel recessed 1" and lined with expanded metal lath
  • Frame: 16 ga. steel with 24 ga. galvanized casing bead and expanded metal lath surrounding door
  • Hinge: Continuous stainless steel hinge opens 180°
  • Latches: Flush, stainless steel cam latch
  • Finish: White baked enamel coat

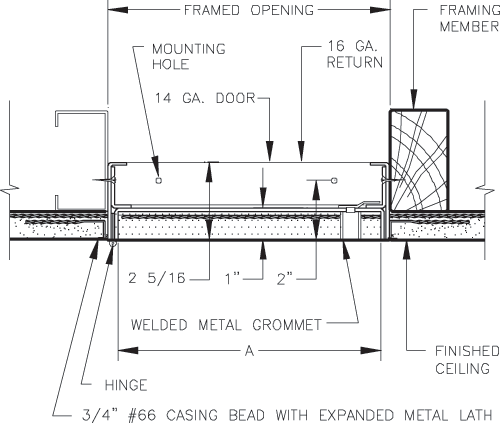

Recessed Plaster Access Door
