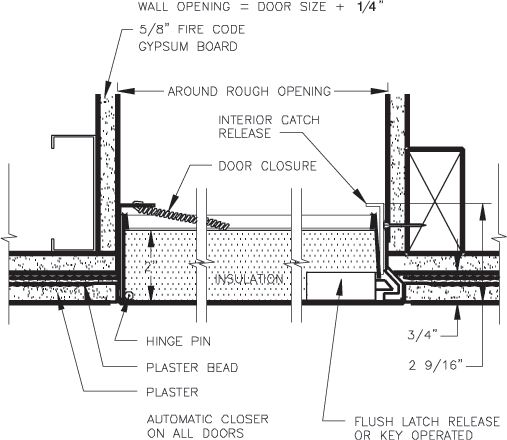

Standard Plaster Fire Rated Access Door / Access Panel

Williams Brothers The WB-FR Standard Fire Rated Access Door with a plaster bead trim for use in plaster walls and ceilings. Accommodates 3/4" of plaster.
Model No. Door Size W x H Wall Opening W x H Slam Latch Price *
FR PL 830 12x12 121/4 x 121/4 1 189.99
FR PL 830 14x14 141/4 x 141/4 1 205.99
FR PL 830 16x16 161/4 x 161/4 1 209.99
FR PL 830 18x18 181/4 x 181/4 1 216.99
FR PL 830 24x24 241/4 x 241/4 1 270.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote


Currently unavailable.
  • For Walls and Ceilings
  • Door: 18 ga. steel
  • Frame: 16 ga. steel, 2 1/2 deep, with 3" wide perforated flange of 24 ga. galvanized material. Space from expanded flange to the 1/4" safety edge of the door will accommodate 3/4" of plaster
  • Insulation: 2" thick mineral wool (THERMAFIBER®)
  • Hinge: Fully concealed, pivot-rod type hinge allows opening to 140º
  • Latches: Self-latching direct action latch will accept both key and knurled knob
  • Automatic Panel Closer: Vertical position only. Ceiling position has self-assisted closing
  • Inside Panel Release: Furnished on all doors
  • Ceiling Installation: To comply with current fire regulation, largest size acceptable is up to and including 24" x 36"
  • Finish: Grey baked enamel coat and can be used as a finish or as a prime coat

Standard Plaster Fire Rated Access Door
