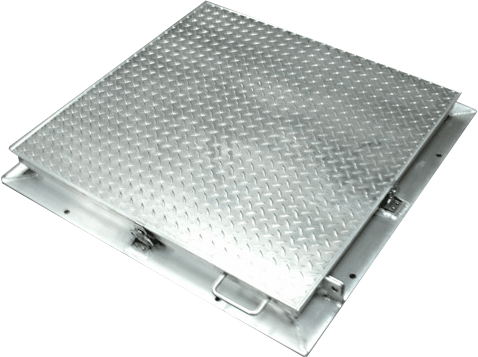

Floodtight Aluminum Floor Door-Raised Frame

AcudorThe Acudor A-FPS series aluminum floor doors are designed for interior and exterior floodtight applications where water may rise above the surface opening.

Product Features:
  • Angle frame construction with 4” high horizontal leg to allow for bolting to concrete.
  • Diamond plate door panel is reinforced for a live load of 625 pounds/sqft. (capable of holding up to 10 ft. head of water).
  • Door panel overlaps frame, compressing the gasket providing a floodtight fit.
  • U shaped neoprene gasket and stainless steel pressure lock system ensure the door will not leak.
Model No. Frame I.D. W x H Price *
A-FPS 24x24 $1,122.99
A-FPS 30x30 $1,242.99
A-FPS 30x48 $1,522.99
A-FPS 36x36 $1,471.99
A-FPS 36x48 $1,871.99

Click to enlarge
Click image to enlarge

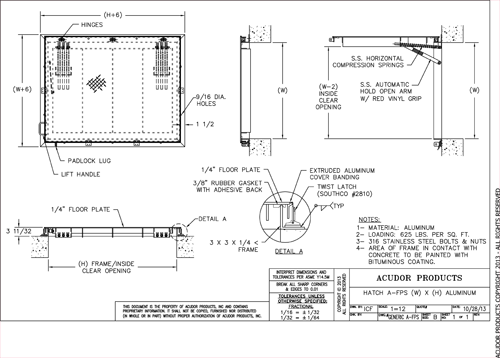

Download the Submittal/Data sheet here

Request a Quote





Qty.

Specifications:
  • Material: Aluminum door & frame ; Type 316 Stainless steel hinges & hardware.
  • Door: 1/4" aluminum diamond plate reinforced for live load of 625 pounds/per sq. ft. (capable of holding up to 10 ft. head of water)
  • Frame: 3/8" aluminum with 4” high raised frame for bolting to concrete
  • Hinge: Type 316 stainless steel butt hinges with tamper proof stainless steel bolts and nuts.
  • Gasket: 3/8” neoprene gasket
  • Opening Device: Automatic hold open arm with red vinyl grip allows door to open to 90 degrees,
    locking door in open position and allowing for easy control when closing door panel. Stainless steel compression springs provide lift assistance.
  • Latch: Type 316 stainless steel pressure
    lock system and exterior staple for padlock
  • Finish: Mill finish with bituminous coating on exterior frame
