Aluminum Floor Door H20 Loading - Angle Frame

AcudorThe Acudor FA series aluminum floor doors are designed for interior and exterior applications where watertightness is not required. The angle frame construction with integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.

Model No. Door Size W x H Price *
FA-H20 24x24 $1,047.99
FA-H20 24x36 $1,414.99
FA-H20 30x30 $1,471.99
FA-H20 36x36 $1,728.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote





Qty.

Specifications:
  • Material: Aluminum door and frame; stainless steel hinges and hardware
  • Door: 1/4" aluminum diamond plate reinforced to meet AASHTO specification H20-44 for traffic loading (16000 lb. wheel load with 30% added for impact)
  • Frame: Angle frame fabricated from aluminum extrusion with an integral 1" anchor flange
  • Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
  • Opening Device :Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. When required, stainless steel compression springs can be provided to add lift assistance.
  • Latch: Flush aluminum drop handle, Stainless steel slamlock with a fixed inside handle, removable outside handle, and removable threaded plug
  • Finish: Mill finish, with bituminous coating on exterior of frame

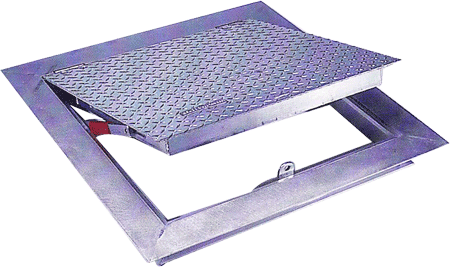

Acudor Aluminum H20 Floor Door
