Aluminum Utility Floor Door - Angle Frame

AcudorThe Acudor FA-UEZ series aluminum floor doors are designed for interior and exterior applications where watertightness is not required. The angle frame construction with integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.

Product Features

  • Spring-loaded latch allows the door leaf to open 180 degrees without the use of tools or the removal of bolts or hardware
  • No more than 35lbs of lift to open from its closed position to 90 degrees open position
  • Hold open arm remains engaged when the door is rotated to the 180 degree open position

Model No. Door Size W x H Price *
FA-UEZ 30x30 $1,060.99
FA-UEZ 36x36 $1,169.99
FA-UEZ 36x60 $1,857.99
FA-UEZ 42x42 $1,469.99
FA-UEZ 48x48 Double Leaf $2,485.99
FA-UEZ 48x72 Double Leaf $3,269.99
FA-UEZ 60x60 Double Leaf $3,829.99

Click to enlarge
Click image to enlarge
Download the Single Door Submittal/Data sheet here

Download the Double Door Submittal/Data sheet here

Request a Quote





Qty.

Specifications:
  • Material: Aluminum door panel with steel frame
  • Door: 1/4" aluminum diamond plate reinforced for 16,000lb wheel loads in off-street locations that may receive incidental vehicle traffic
  • Frame: 3/16" steel angle frame
  • Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts. Allows the door to rotate back to a full 180-degree open position.
  • Opening Device: Galvanized steel hold-open arm. Hold-open arm remains engaged throughout the
    180 degree rotation. Galvanized steel lifting handles. Stainless steel compression springs provide lift assistance.
  • Latch: Flush aluminum drop handle, Stainless steel slamlock with a fixed inside handle, removable outside handle, and removable threaded plug
  • Finish: Hot dipped galvanized finish

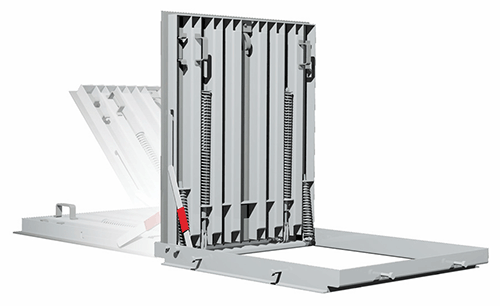

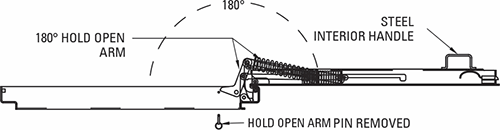

FA-UEZ opens 180 degree

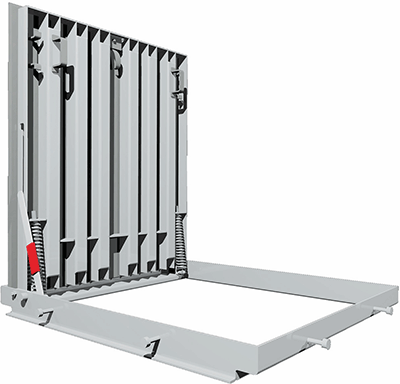

Acudor Aluminum FA-UEZ Floor Door
