Aluminum Floor Door - Frame With Drain

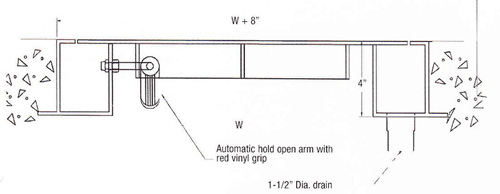

AcudorThe Acudor FC Series aluminum floor doors are designed for interior and exterior applications where watertightness is required. The channel frame construction with 1 1/2" drainage coupling and integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.

Model No. Door Size W x H Price *
FC-300 24x24 $667.99
FC-300 24x36 $765.99
FC-300 30x30 $794.99
FC-300 36x36 $897.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote





Qty.

Specifications:
  • Material: Aluminum door and frame; stainless steel hinges and hardware
  • Door: 1/4" aluminum diamond plate reinforced for live load of 300 pounds/sq. ft.
  • Frame: Channel frame fabricated from aluminum extrusion with 1 1/2" drainage coupling and integral 1" anchor flange
  • Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
  • Opening Device :Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. When required, stainless steel compression springs can be provided to add lift assistance.
  • Latch: Flush aluminum drop handle with staple for padlock
  • Finish: Mill finish, with optional bituminous coating on exterior of frame

Acudor Aluminum Floor Door
