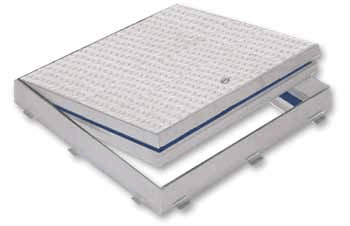

Fire Rated Aluminum Floor Door

AcudorThe Acudor FRFD series 2 hour fire rated aluminum floor doors are designed for interior floor ceiling assemblies where watertightness is not required. The angle frame construction with integral anchor flange is designed to be cast into concrete.
  • Maintains the fire rating of a 2 hour floor ceiling assembly
  • Designed for interior applications
  • Flush aluminum diamond plate cover
  • Warnock Hersey International 2 hour fire rating
  • Tested to NFPA 288 ; ASTM E 119
Model No. Door Size W x H Price *
FRFD 24x24 $3,585.99
FRFD 24x30 $3,940.99
FRFD 24x36 $4,295.99
FRFD 30x30 $4,435.99
FRFD 36x36 $4,942.99
FRFD 36x48 $6,150.99
FRFD 48x48 $7,999.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote





Qty.

Specifications:
  • Material: Aluminum door & top frame ; Stainless steel bottom frame, hinges & hardware
  • Door: 1/4" aluminum diamond plate reinforced for live load of 150 pounds/per sq. ft.
  • Frame: 3" x 3 x 1/4" aluminum top frame with thermal break 3 1/2” x 2” x 11 gauge stainless steel bottom frame
  • Insulation: Two - 1” thick layers of ceramic blanket insulation attached to bottom frame
  • Hinge: Type 316 stainless steel continuous piano hinge
  • Opening Device: Door panel opens to 90 degrees. Automatic hold open arm with red vinyl grip keeps door in open position to ensure safe entry. Stainless steel compression springs provide lift assistance.
    U.L. listed 165 degree fusible link is provided for automatic closing and latching in the event of smoke or fire
  • Latch: Stainless steel slam latch assembly with interior release
  • Finish: Mill finish, with optional bituminous coating on exterior of frame

Acudor Fire Rated Aluminum Floor Door
