1/8" Recessed Aluminum Floor Door

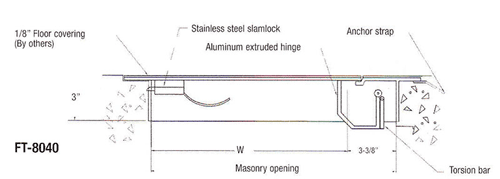

AcudorThe Acudor FT series aluminum floor doors are designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material. The FT-8040 is recessed 1/8" to accommodate carpeting and vinyl tile and where watertightness is not required.
Model No. Door Size W x H Price *
FT-8040 24x24 $771.99
FT-8040 24x36 $854.99
FT-8040 30x30 $877.99
FT-8040 36x36 $1,034.99

Click to enlarge
Click image to enlarge

Download the Submittal/Data sheet here


Request a Quote





Qty.

Specifications:
  • Material: Aluminum door and frame; stainless steel hinges and hardware
  • Door: 1/4" smooth aluminum plate reinforced for live load of 150 pounds/sq. ft. Extruded edging is welded to door panel, providing a 1/8" recess
  • Frame: Angle frame fabricated from aluminum extrusion with integral 1" anchor flange on three sides and welded anchor straps on the hinge side
  • Hinge: Extruded aluminum hinges are welded to inside of door panel and pivot on stainless steel pins
    Opening Automatically hold open arm with red Vinyl grip allow
  • Opening Device: Door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel Stainless steel torsion bars compression springs
  • Latch: Stainless steel slamlock with a fixed inside handle, removable outside handle, and removable threaded plug
  • Finish: Mill finish with bituminous coating applied to exterior of frame

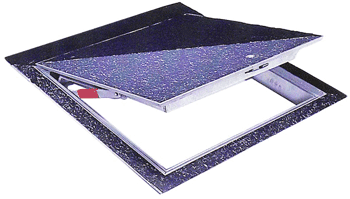

Acudor Aluminum Floor Door
