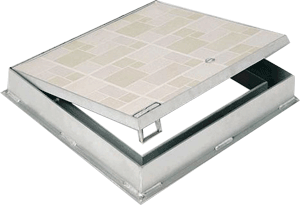

1" Recessed Aluminum Floor Door

AcudorThe FT-8050 is recessed 1" to accommodate ceramic tile/concrete flooring.The Acudor FT series aluminum floor doors are designed for interior and exterior applications that require an access opening that will blend in with the surrounding floor material and where watertightness is required.
Model No. Door Size W x H Price *
FT-8050 24x24 $1,357.99
FT-8050 24x36 $1,754.99
FT-8050 30x30 $1,784.99
FT-8050 36x36 $2,355.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




For Concrete in panel For Ceramic Tile in Panel

Qty.

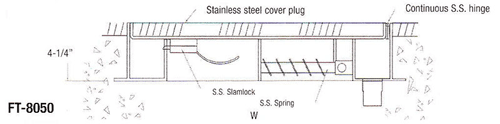

Specifications:
  • Material: Aluminum door and frame; stainless steel hinges and hardware
  • Door: 1/4" smooth aluminum plate reinforced for live load of 150 pounds/sq. ft. Extruded edging is welded to door panel, providing a 1" recess
  • Frame: Channel frame fabricated from aluminum extrusion with 1 1/2" drainage coupling and integral 1" anchor flange
  • Hinge: Stainless steel continuous piano hinge
  • Opening Device: Automatic Hold-Open Arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel.Stainless Steel Open Compression Springs provide lift assist. Fully enclosed spring cylinders are available
  • Latch: Stainless steel slam lock with a fixed inside handle, removable outside handle, and removable threaded plug
  • Finish: Mill finish with bituminous coating applied to exterior of frame

Acudor Aluminum Floor Door
