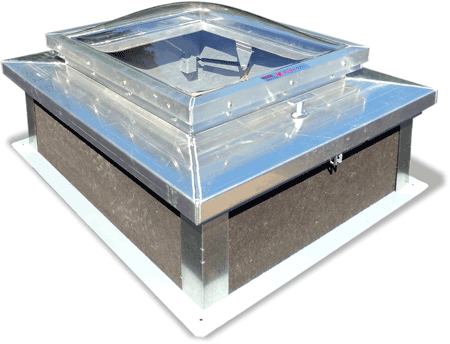

Galvanized Steel with Clear Dome Roof Hatch

AcudorAcudor Roof Hatches are designed to provide convenient, economical access to the Roof of a building. Available in prime coated galvanized steel with Aluminum Hatch and Clear POLYCARBONATE Dome. Our hatches are designed with safety, durability and ease of operation in mind. For commercial application.


Model No. Door Size W x H Price *
G3232D 24x24 $892.99
G3244D 24x36 $906.99
G3838D 30x30 $920.99
G3844D 30x36 $930.99
G4444D 36x36 $1,146.99
G5656D 48x48 $1,799.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation guide here

Download the TSP-1 Installation guide here

Download the SLE-Y Installation guide here

Request a Quote



Available Options:
Safety Ladder Extension (SLE-Y) $129.99
Telescoping Safety Post (TSP-1) $189.99


Qty.

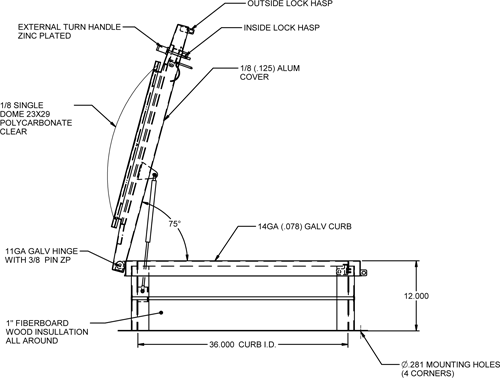

Specifications:
  • Curb: 14 gauge galvanized steel with 1" thick fiber board roof Insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
  • Hinge: 11 Gauge Galvanized steel pivot hinge
  • Latch: T Handle
  • Finish: Galvanized Steel: Grey baked enamel polyester
  • Cover: Clear polycarbonate dome in an aluminum extrusion / aluminum cover. Continuous EPDM weather/draft seal gasket is attached to inside of cover, providing a flush tight fit. The cover is designed to support a live load of 40 pounds/sq ft.


Acudor Galvanized Steel Clear Dome Roof Hatch
Roof Hatch Accessories
