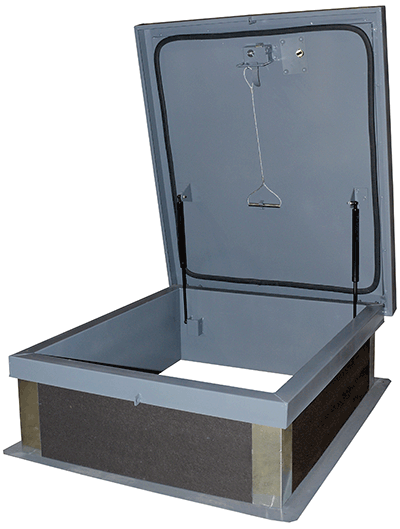

Galvanized Steel Security Roof Hatch

AcudorAcudor Security Roof Hatches are designed to provide convenient,
economical access to the roof of a building while adding an additional
level of security. The heavy gauge materials used to manufacture this
hatch are ideal for applications in banks, prisons, hospitals, and more.


Model No. Door Size W x H Price *
GSEC3232 24x24 $3,564.99
GSEC3244 24x36 $3,699.99
GSEC3838 30x30 $3,842.99
GSEC3844 30x36 $3,957.99
GSEC4444 36x36 $4,220.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation guide here

Download the Maintenance guide here

Download the TSP-1 Installation guide here

Download the SLE-Y Installation guide here

Request a Quote



Available Options:
Safety Ladder Extension (SLE-Y) $129.99
Telescoping Safety Post (TSP-1) $189.99


Qty.

Specifications:
  • Curb: 10 gauge galvanized steel with 1" thick fiberboard roof insulation at curb exterior. Curb is 12" high, with 3.375" wide bottom flange and pre-drilled mounting holes.
  • Hinge: Heavy duty galvanized steel pintle hinges with 3/8" pin
  • Opening: Gas spring operators allow cover to open and close with ease. Inside pull handle allows for easy control when closing cover.
  • Door Latch: Self latching, zinc plated outside T handle with stainless steel inside lock and lever assembly. Heavy duty detention lock with paracentric key. Unit also has inside and outside padlock provisions.
  • Finish: Material is prepared with an iron phosphate wash, followed by a rust inhibiting primer, and then a baked on polyester enamel paint.
  • Cover: Double-skin construction (“in box type design”) with 1" cellulose insulation and a continuous EPDM foam weather/ draft seal gasket that is attached to the inside of cover to provide a flush, tight fit. Designed to support a live load of 40lbs./sq. ft., the cover is 10 gauge galvanized steel with a 22 gauge galvanized steel inside liner.

Acudor Galvanized Steel Security Roof Hatch
