Larsen's Gemini Semi Recessed Fire Extinguisher Cabinet

Model Description
Tub Size WxHxD
Rough Opening
Price *
G24095R Holds 5 lb Fire Extinguishers 1 1/2" Trim ADA Compliant
9 1/2 x 24 x 5 *
10 1/2 x 25 x 4
$79.99
G2409R3 Holds 5 lb Fire Extinguishers 2 1/2" Trim ADA Compliant
9 1/2 x 24 x 5 *
10 1/2 x 25 x 3
$84.99
G2409R7 Holds 10 lb Fire Extinguishers 1 1/2" Trim ADA Compliant
9 1/2 x 24 x 6 *
10 1/2 x 25 x 5
$79.99
G24096R Holds 10 lb Fire Extinguishers 2 1/2" Trim ADA Compliant
9 1/2 x 24 x 6 *
10 1/2 x 25 x 4
$84.99
G2409R4 Holds 10 lb Fire Extinguishers 3 1/2" Trim ADA Compliant
9 1/2 x 24 x 6 *
10 1/2 x 25 x 3
$89.99
G2409RA Holds 10 lb Fire Extinguishers 4" Trim
9 1/2 x 24 x 6 *
10 1/2 x 25 x 2 1/2
$94.99
G2409RM Holds 10 lb Fire Extinguishers 4 1/2" Trim
9 1/2 x 24 x 6 *
10 1/2 x 25 x 2
$99.99
G2712RK Holds 20 lb Fire Extinguishers 1 1/4" Trim ADA Compliant
12 x 27 x 8 *
13 x 28 x 7 1/4
$104.99
G2712RL Holds 20 lb Fire Extinguishers 2 1/2" Trim ADA Compliant
12 x 27 x 8 *
13 x 28 x 6
$109.99
G2712RA Holds 20 lb Fire Extinguishers 4" Trim
12 x 27 x 8 *
13 x 28 x 4 1/2
$114.99
G2712RM Holds 20 lb Fire Extinguishers 4 1/2" Trim
12 x 27 x 8 *
13 x 28 x 4
$119.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the FS Submittal/Data sheet here

Request a Quote



Available Options:
Door Color other than Clear (DC) $19.99
       If other than clear, select color White  Black  Red
Aluminum Finish (AL) $19.99
Stainless Steel Finish (SS) $69.99
Flame Shield ** (FS) $89.99
Horizontal Die Cut (LHDFI) $9.99
Vertical Die Cut Lettering (LVDFI) $9.99
Type-A Die Cut Lettering (LVDFI-TYPE-A) $9.99
       If Die Cut, select color White  Black  Red
Larsen's Lock (LSBL) $8.99
Recessed Handle (LRH) $14.99

** Flame Shield option: Refer to FS Submittal Sheet for dimensions

Qty.
* Lead time: 4 weeks

Larsen's Gemini Series is an aesthetically designed cabinet line which is identified by an extensive selection of frameless acrylic doors.

Gemini cabinets are identical to the Architectural Series, except these units have a frameless door of smooth or textured acrylic in lieu of the conventional hollow-metal door frame.

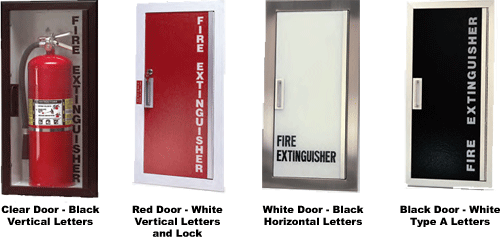

DOOR SPECIFICATION: The standard door material is 1/4 " thick smooth or textured acrylic (1/2 " thick smooth acrylic is available as an option). If lettering is specified, the design is placed on the back of the door to prevent damage. A selection of the more popular Gemini door styles is pictured. The complete range of options, however is outlined in the chart below. The Larsen-Loc® is available with all door styles. All doors have a satin finish pull handle with a self-adjusting roller catch; and a continuous piano hinge constructed of material which matches the trim.

BOX SPECIFICATION: All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with #4 finish.

TRIM AND DOOR SPECIFICATION: Steel trims and doors are one piece, constructed of cold-rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. Aluminum trims are constructed of extruded or fabricated aluminum and all corners are mitered. Aluminum is the recommended material for applications in salt air and other corrosion prone environments.

Download Larsen's Catalog Here

(Fire extinguisher shown in picture not included)



Larsen's Gemini Semi Recessed Fire Extinguisher Cabinet
