Safeguard Series Fully Recessed Fire Extinguisher Cabinets

Model Description
Tub Size WxHxD
Rough Opening
Price *
SFRC-5 Holds 5 lb Fire Extinguishers ADA Compliant
8 x 16-3/4 x 5
9 3/4 x 18 3/4 x 5 1/2
SFRC-10 Holds 10 lb Fire Extinguishers ADA Compliant
9 1/2 x 24 x 6
11 1/4 x 25 3/4 x 6 1/2
SFRC-20 Holds 20 lb Fire Extinguishers ADA Compliant
12 x 27 x 8
13 1/2 x 28 3/4 x 8 1/2

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote

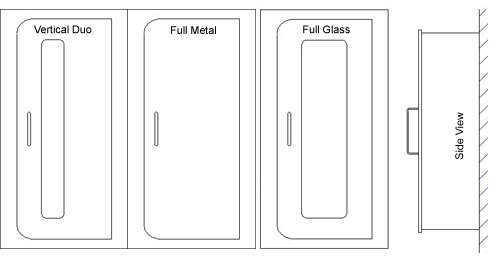

Select Door style:
Full Glass Full Metal Vertical Duo
Available Options:
Safety Break Lock (SBL) $11.99
Mini Theft Alarm (MTA) $34.99
Vertical Decal (VDFI) $4.99
Horizontal Decal (HDFI) $4.99
The Safeguard Series cabinets are designed to meet the specifications for fire rated wall assemblies. These cabinets offer a superior design and fully lined tub casing which makes this series an ideal choice when temperature rise of a fire rated wall assembly is required.
  • Materials:
    • Door Panel/Front: 16 gauge cold-rolled steel
    • Cabinet Tub: 22 gauge cold-rolled steel
  • Interior Tub: 22 gauge cold-rolled steel
  • Exterior Tub: 22 gauge satin coat galvanized completely lined with 5/8" Type X UL gypsum board.
  • Finish: Door Panel/Front: Baked white enamel over rust-inhibiting phosphate treated steel.
  • Door styles: Full Glass (FG), Full Metal (FM)
  • Glazing: Double strength (DSA) glass standard

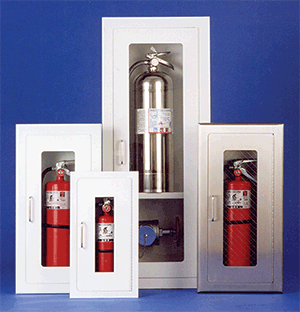

(Fire extinguisher shown in picture not included)

Safeguard Series Fully Recessed Fire Extinguisher Cabinets

Safeguard Series Fully Recessed Fire Extinguisher Cabinets
