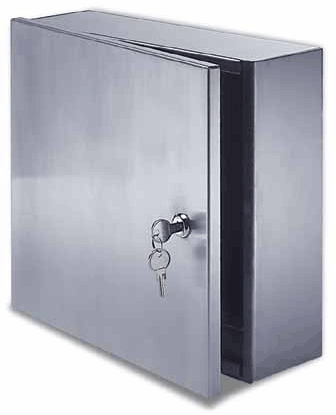

Acudor Surface Mounted Valve Box

AcudorThe Acudor ASVB is a surface mounted valve box designed to provide easy, convenient access to all types of valves and controls that extend outside of the finished wall, but need to be protected by a fully enclosed box. The depth of the valve box can be modified to meet all valve and control requirements. When required, vision panels, louvers and engraved plates can be supplied along with special holes for pipes or conduits.
Model No. Nom. Door Size (WxHxD) Wall/Ceiling Opening Size (WxHxD) Latch Price *
ASVB 8x8x4 8-3/8x8-3/8 1 $152.99
ASVB 8x8x6 8-3/8x8-3/8 1 $180.99
ASVB 8x8x8 8-3/8x8-3/8 1 $210.99
ASVB 12x12x4 12-3/8x12-3/8 1 $190.99
ASVB 12x12x6 12-3/8x12-3/8 1 $220.99
ASVB 12x12x8 12-3/8x12-3/8 1 $234.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Product Data sheet here

Request a Quote




Available Options:
(Item is non-returnable if selecting any options below)
Flush St./Stl. Paddle Handle (ADSSPH) $21.99
Quarter turn knob latch (ADQTKL) $11.99
Plexiglass Vision Panel (ADPVP) $29.99
Engraved Plate (ADEP) $24.99

Qty.

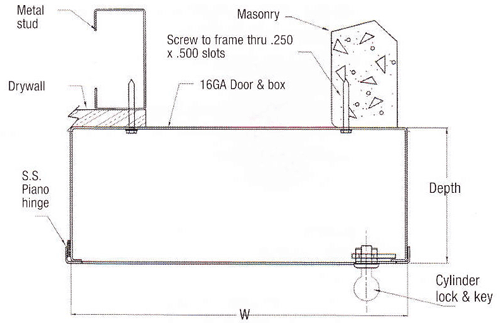

Specifications:
  • For Walls and Ceilings
  • Material: Steel: 16 gauge door and box
  • Door:Overlaps box, providing for a tight secure fit
  • Box: Fully enclosed, attached to door.
    When required, box can be made with open back
  • Hinge: Continuous, exposed piano hinge
  • Latch: Cylinder Lock with key
  • Finish: Prime Coated Steel.
    Also available: Stainless Steel

Surface Valve Box
