Larsen's Vista Surface Mounted Bubble Fire Extinguisher Cabinet

Model Description
Tub Size WxHxD
Price *
V2709SM Holds 5/10 lb Fire Extinguishers
13 x 30 1/2 x 4

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote


Available Options:
Aluminum Finish (AL) $39.99
Stainless Steel Finish (SS) $259.99
Vertical Decal (LVDL) $4.99
Mini Theft Alarm (LMTA) $50.99

GENERAL DESCRIPTION: The Vista Series has the same aesthetic and practical features of the Cameo. The fire extinguisher is projected into a protruding bubble, allowing for full 180 degree visibility and for installation into a shallow wall depth (4"). The fire extinguisher is supported by the manufacturer's standard bracket. The unique Vista bubble door eliminates the need for a door frame.

BOX SPECIFICATION: All recessed and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with #4 finish.

TRIM SPECIFICATION: Steel trims are one piece, constructed of cold-rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. Aluminum trims are constructed of extruded aluminum with satin anodized finish. Clear anodized is standard, and a wide selection of optional color anodized finishes is available. All trim corners are mitered. To specify aluminum trim, use the prefix "AL" before the cabinet model number. Stainless steel trims are one piece, constructed of #4 finish, 304 stainless steel. To specify stainless steel trim, use the prefix "SS" before the cabinet model number.

DOOR SPECIFICATION: The Vista door is a frameless clear acrylic bubble with a chrome plated pull knob, magnetic catch, and continuous piano hinge which matches the trim material. The standard Vista bubble is clear acrylic and red acrylic is available as an option, if specified

Download Larsen's Catalog Here

(Fire extinguisher shown in picture not included)

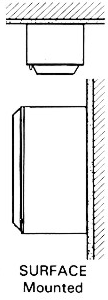

Larsen's Vista Series Surface Mounted Fire Extinguisher Cabinet
