GENERAL DESCRIPTION:
The FLAME-SHIELD option is available for a variety of Larsen's fire extinguisher,
fire department valve, fire hose and fire blanket cabinets. It is designed specifically

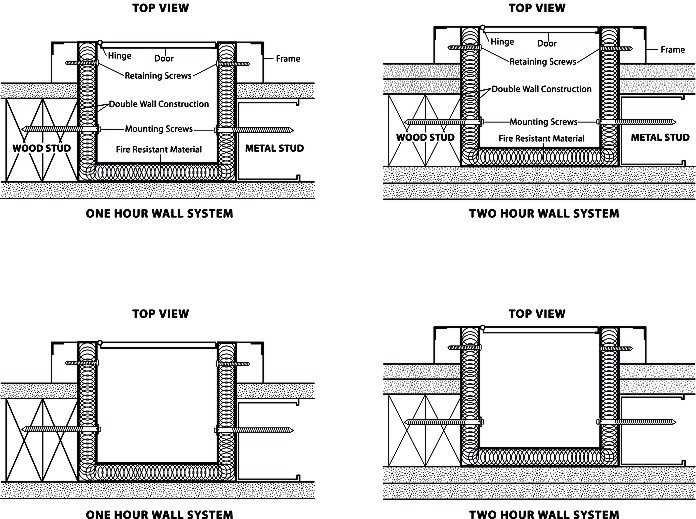

to maintain the integrity of one and two hour fire walls with all Larsen's recessed
and semi-recessed cabinets. Warnock-Hersey has certified and listed Larsen's FLAME-SHIELD
option for one and two hour combustible and non-combustible wall systems to meet
requirements of UBC Standard 43-6 (ASTM E-814). Larsen's FLAME-SHIELD option assures
the specifier that life safety codes will be maintained and by eliminating the
need to continue the fire wall within the rough opening, saves the installer considerable
time and expense. Larsen's FLAME-SHIELD option is appropriate for either new construction
or renovation projects.
BOX SPECIFICATION:
All boxes for Larsen's fire protection cabinets with the FLAME-SHIELD option are
constructed of cold-rolled steel with baked acrylic enamel finish. The space between
the double walls is lined entirely with 5/8" thick fire barrier material.
DOOR AND TRIM SPECIFICATION:
All of Larsen's door styles are available with the FLAME-SHIELD option.
Architectural Series Door Styles
Medallion Series Door Styles
Gemini Series Door Styles
Cameo Series Door Styles
Occult Series Door Styles
All of Larsen's door and trim materials are available with the FLAME-SHIELD
option:
Steel: One piece, cold-rolled with a standard finish
of white baked acrylic enamel.
Aluminum: Extruded or fabricated construction with a standard clear satin anodized
finish.
A wide selection of optional color anodized finishes is available.
Stainless Steel: One piece, 304 stainless steel with a standard finish #4 brushed
finish or
optional #8 polished finish.
Solid Brass or Solid Bronze: One piece with a standard #4 satin or optional
#8 polished finish.
All doors and trims have a clear protective coating.
