Duct Access Door / Access Panel for High Pressure Duct

Acudor Acudor Duct Access Doors for High Pressure Ducts are designed to provide convenient, economical access to high pressure ducts. These doors are for use in high pressure ducts up to 8" static pressure. Pressure rated to 8" W.G. with leakage no greater than 2 CFM per sq. ft. or less. The 5/8" notched knock over tabs on the inside of the frame provide for easy installation.

When required, doors can be made out of aluminum or stainless steel. Other options include: duct doors for fiberglass duct board, duct doors with vision panels, walk in doors and access doors for round ducts.
Model No. Door Size W x H Duct Opening Latches Price *
CD-5080-HP 6x6 4.75X4.75 2 $23.99
CD-5080-HP 8x8 6.75X6.75 2 $24.99
CD-5080-HP 10x10 8.75X8.75 2 $26.99
CD-5080-HP 12x12 10.75X10.75 2 $28.99
CD-5080-HP 14x14 12.75X12.75 4 $32.99
CD-5080-HP 16x16 14.75X14.75 4 $39.99
CD-5080-HP 18x18 16.75X16.75 4 $48.99
CD-5080-HP 20x20 18.75X18.75 4 $67.99
CD-5080-HP 24x24 22.75X22.75 4 $69.99

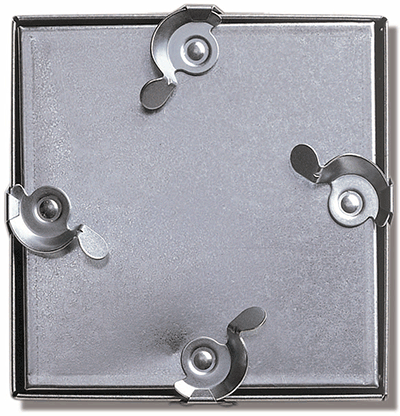

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
2 Cylinder Locks (2ADCL) $23.98

Qty.

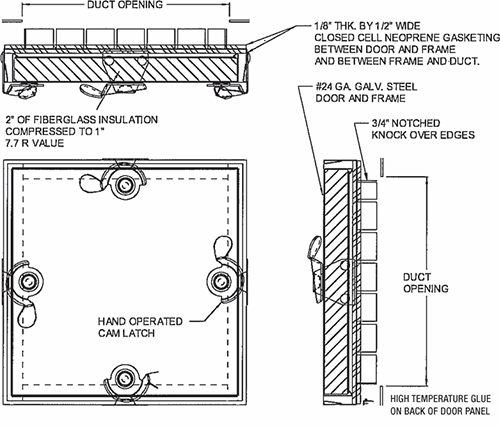

Specifications:
  • Door: 24 gauge galvanized steel,double panel with high temperature glue
  • Frame: 24 gauge galvanized steel with 5/8" notched knock over tabs
  • Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1".
  • Gasketing: 1/4" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8" thick by 1/2" wide closed cell neoprene gasketing between frame and duct
  • Latch: Self tightening, hand operated cam latch

High Pressure Duct Access Door
