Gasketed Access Door / Access Panel

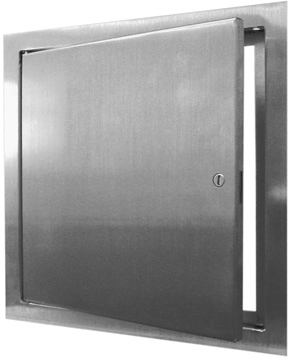

AcudorThe Acudor AS-9000 is a fully gasketed access door, designed for use in walls and ceilings. The formed door panel, with a concealed hinge, and closed cell neoprene gasket, provides for a tight fit. Most popular in stainless steel (SS), with a #4 satin polish, this door is also available in prime coated steel. This door is commonly used in clean rooms, laboratories, operating rooms, etc.

Please note that although being fully gasketed, the AS-9000 has not been tested for air penetration.

Model No. Door Size W x H Opening W x H Latch Price *
AS-9000 12x12 12-3/8x12-3/8 1 $92.99
AS-9000 18x18 18-3/8x18-3/8 2 $118.99
AS-9000 24x24 24-3/8x24-3/8 2 $146.99
AS-9000 24x36 24-3/8x36-3/8 2 $199.99
AS-9000-SS 12x12 12-3/8x12-3/8 1 $242.99
AS-9000-SS 18x18 18-3/8x18-3/8 2 $315.99
AS-9000-SS 24x24 24-3/8x24-3/8 2 $371.99
AS-9000-SS 24x36 24-3/8x36-3/8 2 $539.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options: (one of each, non-returnable if selecting any options below)
Cylinder Lock (ADCL) $11.99

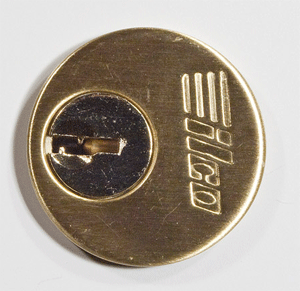

Rim Cylinder Lock (ADRCL) $39.99
Quarter turn knob latch (ADQTKL) $11.99

Qty.

Specifications:
  • For Walls and Ceilings
  • Material: Stainless Steel or Steel: 18 gauge door, 18 gauge mounting frame.
  • Door: Flush to frame with reinforced edges.
  • Frame: Flange to be 1” wide.
  • Hinge: Concealed.
  • Gasket: 1/8” x 3/8” closed cell neoprene gasket.
  • Latch: Stainless steel screwdriver operated cam latch. Also available: cylinder lock & key, allen head cam latch, spanner head cam latch.
  • Finish: Stainless steel: #4 satin polish.
  • Steel: 5 stage iron phosphate with prime coat of white baked enamel.


Aluminum Access Door
