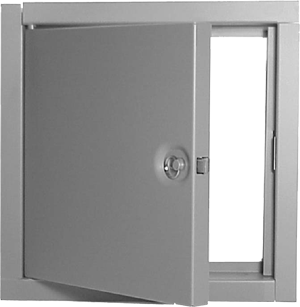

Fire Rated Uninsulated Access Door / Access Panel

Elmdor

Elmdor/Stoneman

Doors are Fire Rated by Underwriters Laboratories Inc., For 1-3/8 hours, "B" Label, and meet ANSI-UL 10B standard. Door has a heavy duty spring closer to assure positive latching when panel closes. This door is for wall installation only. For Ceiling installation click here.

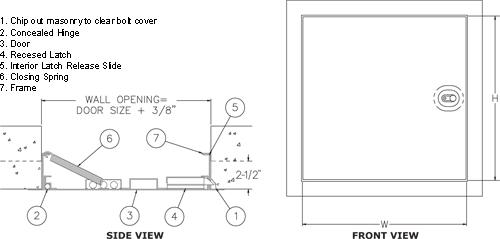

Door has a heavy duty spring to assure positive latching. Frame is equipped with both masonry anchors and bolt holes to facilitate installation in all types of wall construction. Concealed Hinge operates completely out of sight so that only the door and frame is visible. Exterior Latch is recessed and is operated using a ring attached to the sliding bolt. Interior Latch Release Slide is included enabling door to be opened from the inside.
Model No. Door Size W x H Wall Opening W x H Cam Latch Price *
FR 8x8 8 3/8 x 8 3/8 1 $67.99
FR 10x10 10 3/8 x 10 3/8 1 $71.99
FR 12x12 12 3/8 x 12 3/8 1 $72.99
FR 12x18 12 3/8 x 18 3/8 1 $75.99
FR 12x24 12 3/8 x 24 3/8 1 $80.99
FR 14x14 14 3/8 x 14 3/8 1 $84.99
FR 16x16 16 3/8 x 16 3/8 1 $89.99
FR 18x18 18 3/8 x 18 3/8 1 $94.99
FR 20x20 20 3/8 x 20 3/8 1 $98.99
FR 22x22 22 3/8 x 22 3/8 1 $109.99
FR 22x30 22 3/8 x 30 3/8 1 $138.99
FR 24x24 24 3/8 x 24 3/8 1 $116.99
FR 24x36 24 3/8 x 36 3/8 2 $157.99
FR 24x48 24 3/8 x 48 3/8 2 $182.99
FR 30x30 30 3/8 x 30 3/8 2 $161.99
FR 32x32 32 3/8 x 32 3/8 2 $164.99
FR 36x36 36 3/8 x 36 3/8 2 $211.99
FR 36x48 36 3/8 x 48 3/8 2 $245.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Available Options:
Standard Cylinder Lock (ELSCL) $8.99

Qty.

Specifications:
  • For Walls Only. For Ceiling installation click here.
  • Door & Frame: 16 ga. galvannealed steel.
  • Finish: Prime coat suitable for painting
  • Hinge: Concealed Hinge
  • Latches: Recessed Turn Latch, Cylinder Lock Optional
  • Inside Panel Release: Furnished on all doors

FR Access Door
