Elite Series Semi Recessed Fire Extinguisher Cabinets

Model	Description	Tub Size WxHxD	Non-Rated Rough Opening	Price *
ESRC-5-1	Holds 5 lb Fire Extinguishers 1" Square Trim	8 x 17 x 5	8-1/4 x 17-1/4 x 4	$92.99
ESRC-5-2	Holds 5 lb Fire Extinguishers 2" Rolled Trim	8 x 17 x 5	8-1/4 x 17-1/4 x 3	$109.99
ESRC-10-2	Holds 10 lb Fire Extinguishers 2" Rolled Trim	9 x 24 x 6	9-1/4 x 24-1/4 x 4	$112.99
ESRC-10-3	Holds 10 lb Fire Extinguishers 3" Rolled Trim	9 x 24 x 6	9-1/4 x 24-1/4 x 3	$117.99
* Plus shipping and handling

Download the Submittal/Data sheet here

Request a Quote

Door style:
Full Glass Full Metal Vertical Duo
Available Options:
Vertical Decal (VDFI) $4.99
If Lettering, color: Black Red White
Fire Rating * (FS) $115.99

Qty.

* Refer to submittal sheet for Fire Rated rough opening

The Elite Series cabinets are designed for ease of operation, strength and durability. Offering 16 gauge cold rolled steel doors, these cabinets are aesthetically pleasing in appearance affording an architectural look. Ideal for schools and other high traffic structures.

Materials:
- Door Panel/Front: 16 gauge cold-rolled steel
- Cabinet Tub: 22 gauge cold-rolled steel
Finish: Door Panel/Front: Baked white enamel over rust-inhibiting phosphate treated steel.

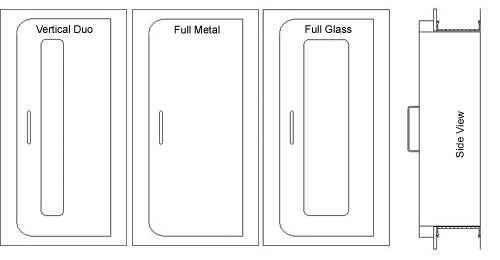

Door styles: Full Glass (FG), Full Metal (FM), Vertical Duo (VD)
Glazing: Clear Acrylic
Optional:
- Safety Break Lock (SBL), keyed alike. Keeps door locked, but breaks away when needed.

(Fire extinguisher shown in picture not included)

Elite Series Semi Recessed Fire Extinguisher Cabinets
