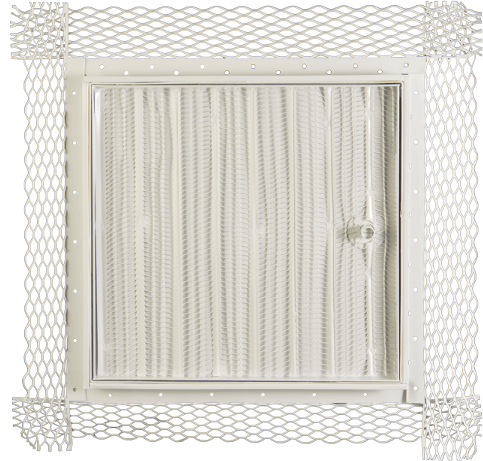

Recessed Plaster Access Door / Access Panel

The DSC-210PL is recessed 1/2" and lined with self-furring metal lath allowing plaster of surrounding surfaces to continue without interruption over face of door.

Model No.	Door Size H x W	Opening H x W	Stud Catches	Price *
DSC-210PL	12X12	12 1/8X12 1/8	1	$98.99
DSC-210PL	18X18	18 1/8X18 1/8	2	$149.99
DSC-210PL	24X12	24 1/8X12 1/8	2	$149.99
DSC-210PL	24X24	24 1/8X24 1/8	2	$181.99
DSC-210PL	36X24	36 1/8X24 1/8	3	$260.99
* Plus shipping and handling. Doors larger or equal to 30" are subject to oversize charge (Free Shipping at 65+ doors)

Download the Submittal/Data sheet here

Request a Quote

Specifications:

For Walls and Ceilings
For Plaster Only

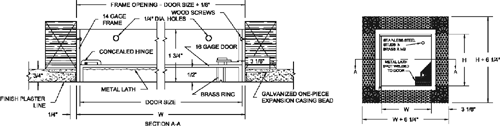

Frame: 14 gauge steel and surrounded by 22 gauge expansion casing bead with metal lath.
Door: 16 gauge steel, recessed 1/2" and lined with self-furring 3.4 flat rib galvanized steel lath.
Hinge: Concealed pivoting rod type. Brass sleeves are welded to the door to protect plaster around stainless steel cam and stud.
Finish: Prime coat of rust inhibitive electrostatic powder, baked white enamel.
