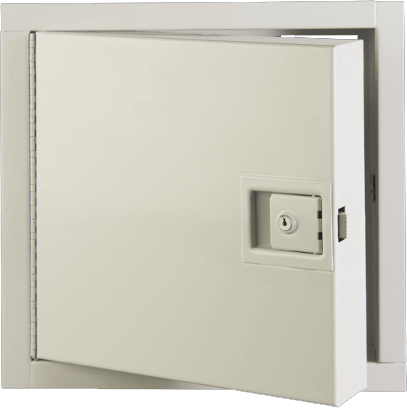

Universal Stainless Steel Fire Rated Access Door / Access Panel

The KRP-150FR with stainless steel finish is flush mounted, with both anchor straps and mounting holes to facilitate installation. The KRP-150FR is insulated and rated by Underwriters Laboratories for 1.5 hour "B" label in walls and by Warnock Hersey for 3 hours in ceilings. Listed below are standard sizes, other sizes are available.

Model No.	Door Size H x W	Opening H x W	Stud Catches / Latches	Price *
KRP-150FR-SS	12X12	12 3/8X12 3/8	1	$285.99
KRP-150FR-SS	16X16	16 3/8X16 3/8	1	$389.99
KRP-150FR-SS	18X18	18 3/8X18 3/8	1	$423.99
KRP-150FR-SS	24X24	24 3/8X24 3/8	1	$572.99
KRP-150FR-SS	36X24	36 3/8X24 3/8	2	$730.99
* Plus shipping and handling. Doors larger or equal to 30" are subject to oversize charge (Free Shipping at 65+ doors)

Download the Submittal/Data sheet here

Download the Installation Instructions here

Request a Quote

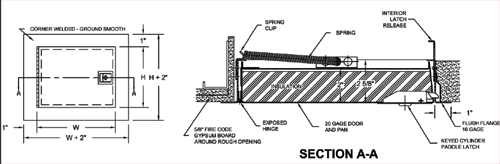

Specifications:

For Walls and Ceilings (Max. 36X24 for Ceilings)
For all surfaces
Frame: 16 gauge steel and 1 inch wide.
Door: 20 gauge steel, welded pan type filled with 2" thick fire-rated insulation and opens to 175°. The door is self-latching with automatic closer and interior latch release.
Hinge: Continuous piano hinge.
Finish: #4 Satin Stainless Steel
