Recessed Acoustical Tile Access Door / Access Panel

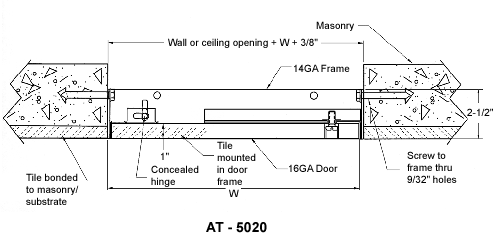

The Acudor AT-5020 recessed access door is designed for flush installation in walls or ceilings when it is required to conceal the door panel, which is recessed 1".

Model No.	Door Size W x H	Opening W x H	Latch	Price *
AT-5020	12x12	12-3/8x12-3/8	1	$65.99
AT-5020	18x18	18-3/8x18-3/8	2	$92.99
AT-5020	24x24	24-3/8x24-3/8	2	$122.99
AT-5020	24x36	24-3/8x36-3/8	4	$192.99
* Plus shipping and handling. Doors larger or equal to 30" are subject to oversize charge (Free Shipping at 50+ doors)

Download the Submittal/Data sheet here

Request a Quote

Specifications:

For Walls and Ceilings
Material: Steel, 16 gauge door
Access Door: Recessed 1".
Frame: 14 gauge mounting frame.
Hinge: Concealed, pivoting rod type.
Latch: Flush to surface, screwdriver operated cam latch. Also available: cylinder lock and key, allen head cam latch, spanner head cam latch.
Finish: Steel: 5-stage iron phosphate preparation with prime coat of white baked enamel.
