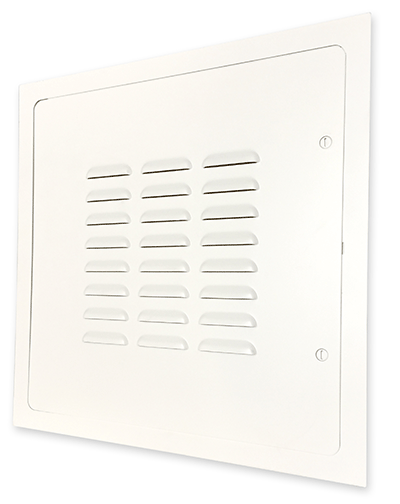

Louvered Universal Access Door / Access Panel

Acudor The Acudor UF-5000 is an innovative universal flush access door for walls and ceilings. It is designed for installation in drywall, plaster, masonry, tile or any flush surface.
The door panel features rounded safety corners which provide an architecturally pleasing appearance. The one piece trim flange will not rack, sag or distort.
The unique continuous concealed hinge will not bind or corrode, allowing the door to operate freely time and time again. For easy installation, the mounting frame is 1-1/4” deep, giving maximum clearance behind the door frame.
Model No. Door Size W x H Opening W x H Latch Price *
UF-5000-LV 12x12 12-3/8x12-3/8 1 $151.99
UF-5000-LV 18x18 18-3/8x18-3/8 2 $221.99
UF-5000-LV 24x24 24-3/8x24-3/8 4 $281.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote




Comes with Screw Driver Latches
Available Options: (one of each, non-returnable if selecting any options below)
Standard Cylinder Lock (ADSCL) $14.99

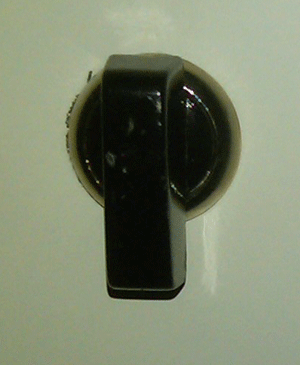

Quarter turn knob latch (ADQTKL) $14.99

Qty.

Specifications:
  • For Walls and Ceilings
  • Material: 16" x 16" and smaller: 16 gauge door, 18 gauge mounting frame.
    Over 16" x 16": 14 gauge door, 16 gauge mounting frame.
  • Door: Flush to frame — rounded safety corners.
  • Frame: One piece outer flange welded to mounting frame.
  • Hinge: Continuous, concealed.
  • Latch: Stainless steel screwdriver operated cam latch.
  • Finish: Steel: 5 stage iron phosphate preparation with prime coat of white baked enamel.

Universal Access Door
