Exterior Access Door / Access Panel

Elmdor

Elmdor Exterior Access Doors are manufactured and engineered to provide access to exterior applications ensuring years of protection against outdoor elements. Our new technology helps to manifest resistance to water and vapor. Our Exterior Door includes foam insulation and neoprene gasket on four sides.

Model No.	Door Size W x H	Wall Opening W x H	Cam Latch	Price *
ED	12x12	12 3/8 x 12 3/8	1	$207.99
ED	14x14	14 3/8 x 14 3/8	1	$225.99
ED	18x18	18 3/8 x 18 3/8	1	$268.99
ED	24x24	24 3/8 x 24 3/8	1	$379.99
ED	22x30	22 3/8 x 30 3/8	2	$479.99
ED	30x30	30 3/8 x 30 3/8	2	$687.99
ED	24x36	24 3/8 x 36 3/8	2	$568.99
ED	36x36	36 3/8 x 36 3/8	2	$725.99
ED	36x48	36 3/8 x 48 3/8	2	$843.99
* Plus shipping and handling. Doors larger or equal to 30" are subject to oversize charge (Free Shipping at 75+ doors)

Download the Submittal/Data sheet here

Request a Quote

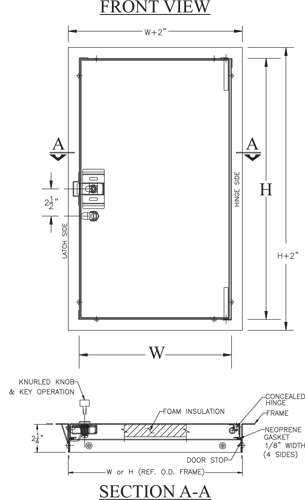

Specifications:

For Walls and Ceilings
Door: 16 ga., galvannealed steel with a prime coat finish and 1" thick rigid foam insulation with a R value of cw90-5.9.
Frame: 16 ga., galvannealed steel with a prime coat finish and provided with masonry anchors and bolt holes
Finish: Prime coat suitable for painting
Hinge: Concealed and operates completely out of sight, so that only the door and frame are visible.
Exterior Hatch: Cylinder lock that features a knurled knob or key operation
