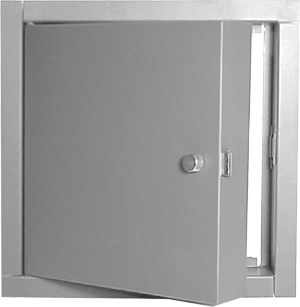

Fire Rated Access Door / Access Panel

Elmdor

Elmdor/Stoneman

Doors are rated by Underwriters Laboratories for 1.5 hours, "B" label in walls, and by Warnock Hersey for 3 hours in ceilings. The FRC Series Doors should be utilized when providing access in fire rated walls and ceilings. FRC Series Doors have heavy-duty spring closures to ensure positive latching when panel closes. An interior latch release is also included on all doors to enable unlocking from inside.

Model No. Door Size W x H Wall Opening W x H
Ceilling Inst. Add 1" each
Cam Latch Price *
FRC 8x8 8 3/8 x 8 3/8 1 $159.99
FRC 10x10 10 3/8 x 10 3/8 1 $163.99
FRC 12x12 12 3/8 x 12 3/8 1 $168.99
FRC 14x14 14 3/8 x 14 3/8 1 $179.99
FRC 16x16 16 3/8 x 16 3/8 1 $206.99
FRC 18x18 18 3/8 x 18 3/8 1 $217.99
FRC 18x24 18 3/8 x 24 3/8 1 $229.99
FRC 20x20 20 3/8 x 20 3/8 1 $225.99
FRC 22x30 22 3/8 x 30 3/8 2 $387.99
FRC 22x36 22 3/8 x 36 3/8 2 $405.99
FRC 24x24 24 3/8 x 24 3/8 1 $304.99
FRC 24x36 24 3/8 x 36 3/8 2 $455.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Request a Quote



Qty.
Specifications:
  • For Walls and Ceilings
  • Door: 20 ga. galvannealed steel provided with two inches of insulation in a sandwich type construction Frame: 16 ga. galvannealed steel provided with masonry anchors and bolt holes
  • Finish: Prime coat suitable for painting
  • Hinge: Concealed Piano Hinge
  • Latches: Knurled knob and key operation
  • Inside Panel Release: Furnished on all doors
  • Download the ceiling installation guide

FRC Access Door
