Floodtight / Gastight Aluminum Floor Door

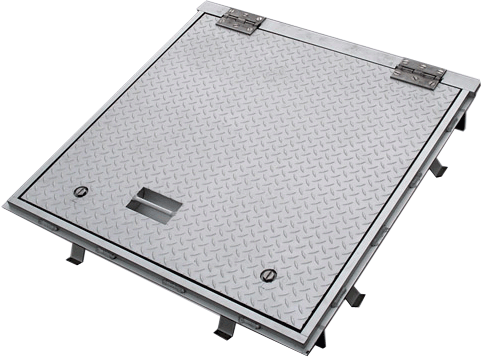

Acudor The Acudor AW-APS series aluminum floor doors are designed for interior and exterior applications where floodtight or gastight is required.

Product Features:

Angle frame construction with anchors welded around the frame for casting into concrete.
Diamond plate door panel is reinforced for a live load of 1560 pounds/sqft. (capable of holding up to 25 ft. head of water).
Door panel overlaps frame, compressing the gasket providing a floodtight/gastight fit.
EPDM gasket and floodtight cam locks ensure door will not leak from standing water.

Model No.	Frame I.D. W x H	Price *
AW-APS	24x24	$2,614.99
AW-APS	24x30	$2,876.99
AW-APS	24x36	$2,995.99
AW-APS	30x30	$3,112.99
AW-APS	30x36	$3,480.99
AW-APS	30x48	$4,037.99
AW-APS	36x36	$3,770.99
AW-APS	36x48	$4,244.99
* Includes LTL Freight (continental US only, Absolutely no residential delivery) Lead time: 6-8 weeks, special order, not returnable.

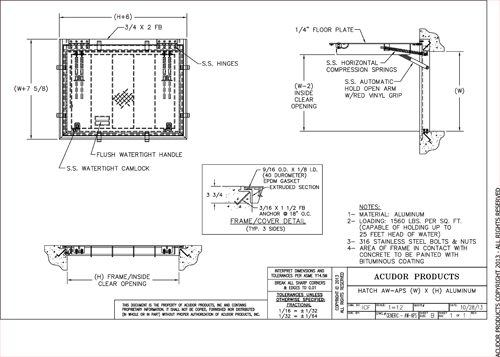

Specifications:

Material: Aluminum door & frame ; Type 316 Stainless steel hinges & hardware
Door: 1/4" aluminum diamond plate reinforced for live load of 1560 pounds/per sq. ft. (capable of holding up to 25 ft. head of water)
Frame: 3/8" aluminum with 3/16” x 1 1/2” strap anchors welded around the frame for casting into concrete
Hinge: Type 316 stainless steel butt hinges with tamper proof stainless steel bolts and nuts
Gasket: 9/16” O.D. x 1/8” I.D. EPDM gasket
Opening Device: Automatic hold open arm with red vinyl grip allows door to open to 90 degrees, locking door in open position and allowing for easy control when closing door panel. Stainless steel compression springs provide lift assistance.
Latch: Type 316 stainless steel floodtight cam locks and flush floodtight handle
Finish: Mill finish with bituminous coating on exterior frame
