Aluminum Floor Door H20 Loading - Frame With Drain

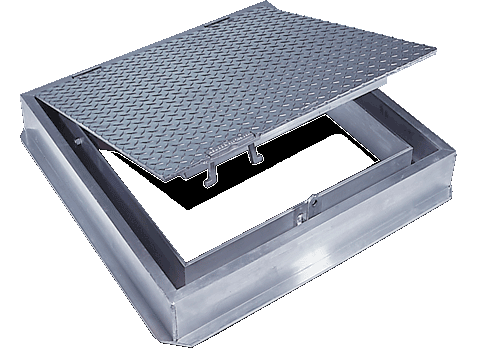

The Acudor FC Series aluminum floor doors are designed for interior and exterior applications where watertightness is required. The channel frame construction with 1 1/2" drainage coupling and integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.
Model No.
Door Size W x H
Price *
FC-H20
24x24
$1,953.99
FC-H20
24x36
$2,380.99
FC-H20
30x30
$2,647.99
FC-H20
36x36
$3,018.99
* Includes LTL Freight (continental US only, Absolutely no residential delivery)
Lead time: 4 weeks, not returnable
Material: Aluminum door and frame; stainless steel hinges and hardware
Door: 1/4" aluminum diamond plate reinforced to meet AASHTO specification H20-44 for traffic loading (16000 lb. wheel load with 30% added for impact)

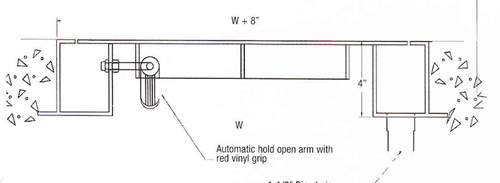

Frame: Channel frame fabricated from aluminum extrusion with 1 1/2" drainage coupling and integral 1" anchor flange
Hinge: Stainless steel butt hinges with tamperproof stainless steel bolts and nuts
Opening Device :Automatic hold open arm with red vinyl grip allows door panel to open to 90 degrees, locking door in open position, and allowing for easy control when closing door panel. When required, stainless steel compression springs can be provided to add lift assistance.
Latch: Flush aluminum drop handle with staple for padlock
Finish: Mill finish, with bituminous coating on exterior of frame
The Acudor FC Series aluminum floor doors are designed for interior and exterior applications where watertightness is required. The channel frame construction with 1 1/2" drainage coupling and integral anchor flange is designed to be cast into concrete. The diamond plate door panel is equipped with a flush aluminum drop handle and an automatic hold open arm with red vinyl grip.
