Larsen's Architectural Fully Recessed Fire Extinguisher Cabinet

Model Description
Tub Size WxHxD
Non-Rated Rough Opening
Price *
2409R1 Holds 5 lb Fire Extinguishers ADA Compliant
9 1/2 x 24 x 5 *
10 1/2 x 25 x 5 1/4
2409R2 Holds 10 lb Fire Extinguishers ADA Compliant
9 1/2 x 24 x 6 *
10 1/2 x 25 x 6 1/4
2712R Holds 20 lb Fire Extinguishers ADA Compliant
12 x 27 x 8 *
13 x 28 x 8 1/4
See also: Replacement parts Also available as: Semi Recessed Surface Mounted

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the FS Submittal/Data sheet here

Request a Quote


Door style:
Full Glass Full Metal Vertical Duo
Horizontal Duo
Available Options:
Aluminum Finish (AL) $34.99
Stainless Steel Finish (SS) $135.99
Fire Rating Flame Shield * (FS) $189.99
(Fire Rating for 2712 series $199.99)
Tempered Glass (LTG) $24.99
Laminated Safety Glass (LLSG) $39.99
Vertical Decal Lettering (LVDL) $4.99
Vertical Die Cut Lettering (LVDFI) $9.99
       If Lettering, color: Black  Red  White
Larsen's Lock (LSBL) $12.99
Recessed Handle ** (LRH) $25.99
Die Cast Fire Handle ** (LDCFH) $25.99
      If Die Cast Handle, color:
     Standard  Black  Red White
Larsen's Vigilante Alarm (LVA) $54.99
* Flame Shield option: Refer to FS Submittal Sheet for dimensions
** Recessed Handle not available with Full Glass.

Larsen's Architectural Series is a traditional, value-added line of recessed, semi-recessed, and surface mounted fire extinguisher cabinets.

These units are designed for all types of buildings and are equipped with the conventional door styles such as those pictured below. The standard door and trim material is steel, and optional materials include both aluminum and stainless steel. All doors are 1/2 inch thick and open 180 degrees. All doors have a satin finish pull handle with a self-adjusting roller catch; and a continuous piano hinge constructed of material which matches the door and trim.

Clear satin anodized finish is standard for all trims and doors, and a wide selection of optional color anodized finishes is available.

BOX SPECIFICATION: All recessed and semi-recessed cabinets and surface-mounted steel cabinets have a heavy gauge, white baked enamel box. Surface-mounted cabinets with aluminum door and trim have a box constructed entirely of clear or color anodized aluminum. Surface-mounted cabinets with stainless steel door and trim have a box constructed entirely of 304 stainless steel with #4 finish.

TRIM AND DOOR SPECIFICATION: Steel trims and doors are one piece, constructed of cold-rolled steel with a standard finish of white baked acrylic enamel, which can be used as either a finish or prime coat. Aluminum trims are constructed of extruded or fabricated aluminum and all corners are mitered. Aluminum is the recommended material for applications in salt air and other corrosion prone environments.

*Inside box depth is 4¾" when supplied with aluminum door and trim.

Download Larsen's Catalog Here

(Fire extinguisher shown in picture not included)

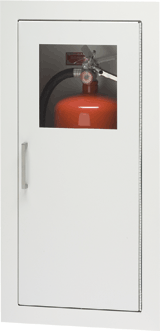

White Baked Enamel, HD Door

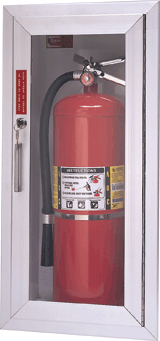

Aluminum Finish, FG Door

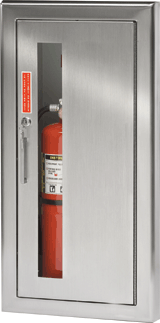

Stainless Steel Finish, VD Door
White Baked Enamel
Horizontal Duo Door
Aluminum Finish
Full Glass Door w/ Lock
Stainless Steel Finish
Vertical Duo Door w/ Lock
Larsen's Architectural Surface Mounted Fire Extinguisher Cabinet
Larsen's Architectural Surface Mounted Fire Extinguisher Cabinet Trims
