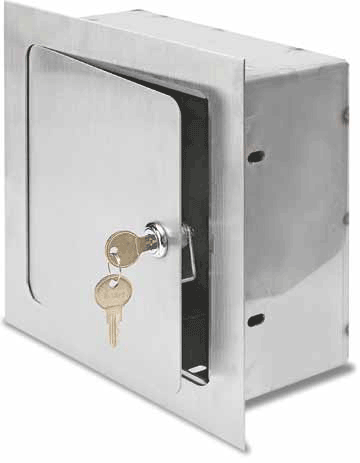

Acudor Recessed Mounted Prime Coated Steel Valve Box

AcudorAcudor Recessed Valve Boxes ARVB are designed to provide easy, convenient access to all types of valves and controls that need to be concealed in the wall, but protected by a fully enclosed box. The depth of the valve box can be modified to meet all the valve and control requirements. When required, vision panels, louvers, engraved plates can be supplied, along with special holes for pipes or conduits.
Model No. Nom. Door Size (WxHxD) Wall/Ceiling Opening Size (WxHxD) Latch Price *
ARVB (White) 8x8x4 8-3/8x8-3/8 1 $164.99
ARVB (White) 8x8x6 8-3/8x8-3/8 1 $194.99
ARVB (White) 8x8x8 8-3/8x8-3/8 1 $228.99
ARVB (White) 12x12x4 12-3/8x12-3/8 1 $194.99
ARVB (White) 12x12x6 12-3/8x12-3/8 1 $228.99
ARVB (White) 12x12x8 12-3/8x12-3/8 1 $250.99

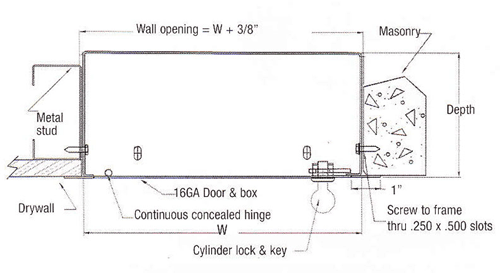

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Product Data sheet here

Request a Quote




Available Options:
(Item is non-returnable if selecting any options below. Paddle handle or knob latch will replace cylinder lock if selected)
Flush St./Stl. Paddle Handle (ADSSPH) $21.99
Quarter turn knob latch (ADQTKL) $14.99
Plexiglass Vision Panel (ADPVP) $29.99
Engraved Plate (ADEP) $24.99

Qty.



Specifications:
  • For Walls and Ceilings
  • Material: Steel: 16 gauge door, frame, box
  • Door: Flush to frame - rounded safety corners
  • Frame: One piece outer flange welded to box
  • Box: Fully enclosed, completely attached to frame. When required, box can be made with open back
  • Hinge: Continuous, concealed
  • Latch: Cylinder Lock with key, if no other options selected.
  • Finish: Prime Coated Steel
    Also available: Stainless Steel

Recessed Valve Box
