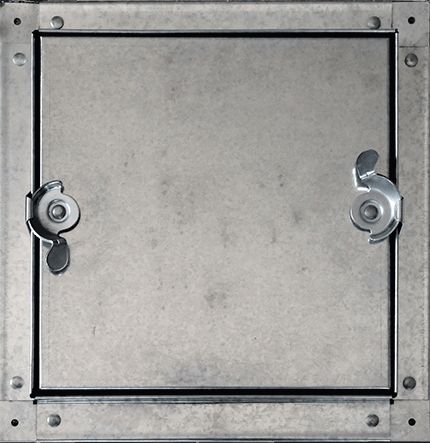

The CDSS-6030 Self Stick Duct Door provides easy access to sheet metal ducts by utilizing an innovative self stick frame for easy installation. The door panel is insulated, double cam, no hinge. The CDSS-6030 is tested to 10" SP with minimal leakage
Model No.
Door Size W x H
Duct Opening
Latches
Price *
CDSS-6030
6x6
4-1/2X4-1/2
2
$18.99
CDSS-6030
8x8
6-1/2X6-1/2
2
$19.99
CDSS-6030
10x10
8-1/2X8-1/2
2
$21.99
CDSS-6030
12x12
10-1/2X10-1/2
2
$22.99
CDSS-6030
14x14
12-1/2X12-1/2
4
$26.99
CDSS-6030
16x16
14-1/2X14-1/2
4
$30.99
CDSS-6030
18x18
16-1/2X16-1/2
4
$38.99
CDSS-6030
20x20
18-1/2X18-1/2
4
$52.99
CDSS-6030
24x24
22-1/2X22-1/2
4
$54.99
* Plus shipping
and handling.
(Free Shipping at 50+ doors)

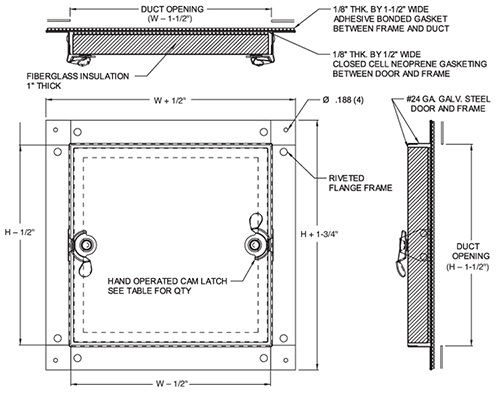

Insulation: Door panel filled with 1" fiberglass insulation
Gasketing: 1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8” thick by 1-1/2” wide adhesive bonded gasket between frame to duct
Latch: Self tightening, hand operated cam latches
Hardware: Hex head sheet metal screws
