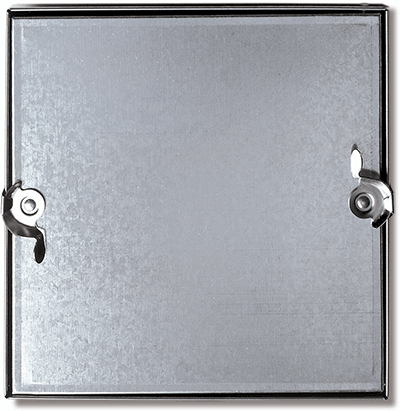

Acudor Duct Access Doors are designed to provide convenient, economical access to duct components. The insulated door panel, along with the gasketing between the door and frame assures a tight seal without obstruction in the air system. Acudor duct access doors are available in either hinged (HD-5070) or double cam (CD-5080) construction.
Model No.
Door Size W x H
Duct Opening
Latches
Price *
CD-5080
6x6
4.75X4.75
2
$14.99
CD-5080
8x8
6.75X6.75
2
$15.99
CD-5080
10x10
8.75X8.75
2
$16.99
CD-5080
12x12
10.75X10.75
2
$18.99
CD-5080
14x14
12.75X12.75
4
$21.99
CD-5080
16x16
14.75X14.75
4
$24.99
CD-5080
18x18
16.75X16.75
4
$30.99
CD-5080
20x20
18.75X18.75
4
$42.99
CD-5080
24x24
22.75X22.75
4
$43.99
* Plus shipping
and handling.
(Free Shipping at 50+ doors)

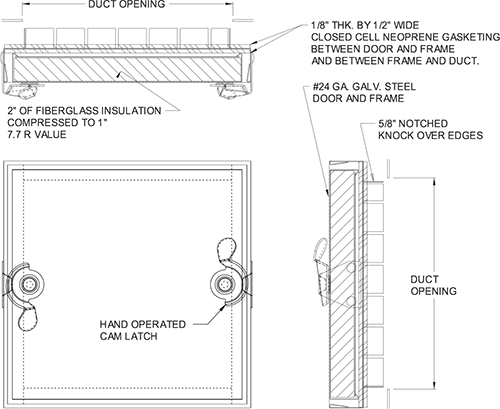

Frame: 24 gauge galvanized steel with 5/8c notched knock over tabs
Insulation: Door panel filled with 2" fiberglass insulation (7.7 R factor), compressed into 1".
Gasketing:1/4" thick by 1/2" wide closed cell neoprene gasketing between door and frame. 1/8" thick by 1/2" wide closed cell neoprene gasketing between frame and duct
Latch: Self tightening, hand operated cam latches
