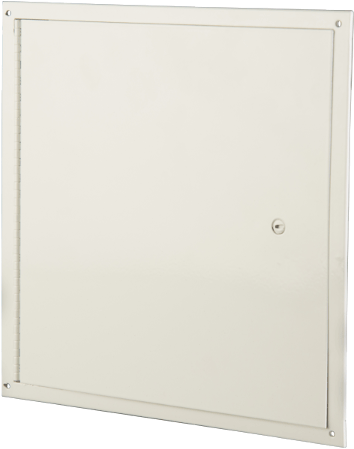

Surface Mounted Access Door / Access Panel

The DSB-214SM is a surface mounted door that does not require framing, bracing or notching and cutting of inner wall obstructions. Single piece construction of the frame prevents unit from racking and allows door to sit perfectly within frame and to open to 175 degrees.

Model No.	Door Size H x W	Stud Catches	Price *
DSB-214SM	8X8	1	$34.99
DSB-214SM	12X12	1	$42.99
DSB-214SM	16X16	2	$51.99
DSB-214SM	24X24	4	$76.99
* Plus shipping and handling. Doors larger or equal to 30" are subject to oversize charge (Free Shipping at 65+ doors)

Download the Submittal/Data sheet here

Request a Quote

Specifications:

For Walls and Ceilings
For all surfaces
Door and Frame:
12" x 12" and smaller: 16 gauge steel
Larger sizes: 14 gauge steel
Trim: One-piece construction
Hinge: Continuous piano hinge.
Finish: Prime coat of rust inhibitive electrostatic powder, baked white enamel.
