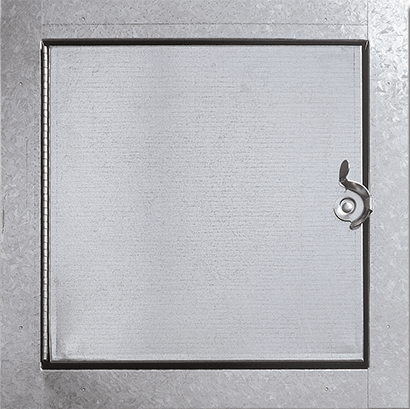

Ductboard/Fiberglass Ducts Access Door / Access Panel
Acudor Duct Access Doors for Ductboard/Fiberglass Ducts are designed to provide convenient, economical access to fiberglass ducts. These doors are for use in fiberglass ducs with low to medium pressure up to 3" static W.G.
Model No.
Door Size W x H
Duct Opening
Latches
Price *
HD-5070-F
6x6
6X6
1
$21.99
HD-5070-F
8x8
8X8
1
$23.99
HD-5070-F
10x10
10X10
1
$24.99
HD-5070-F
12x12
12X12
1
$26.99
HD-5070-F
14x14
14X14
2
$30.99
HD-5070-F
16x16
16X16
2
$36.99
HD-5070-F
18x18
18X18
2
$44.99
HD-5070-F
20x20
20X20
2
$62.99
HD-5070-F
24x24
24X24
2
$64.99
* Plus shipping
and handling.
(Free Shipping at 50+ doors)

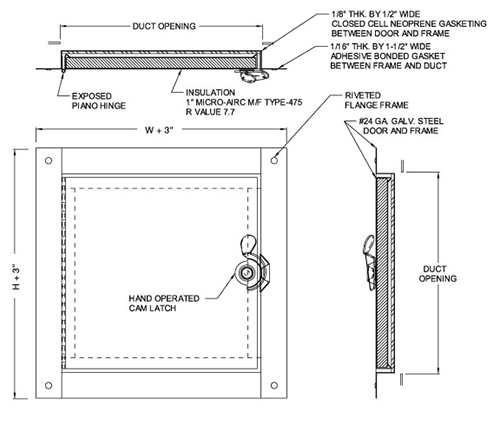

Insulation: Insulation 1" Micro-AIRC M/F TYPE-475 R value 7.7
Gasketing:1/8" thick by 1/2" wide closed cell neoprene gasketing between door and frame and 1/16" thick by 1-1/2" adhesive bonded gasket between frame to duct
Latch: Self tightening, hand operated cam latches
