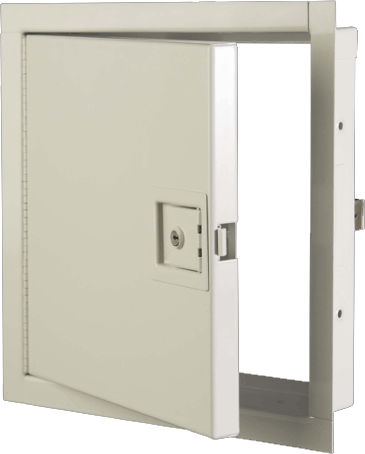

Fire Rated Stainless Steel Uninsulated Access Door / Access Panel

Karp The KRP-250FR with stainless steel finish is flush mounted, with both anchor straps and mounting holes to facilitate installation. The KRP-250FR is non-insulated for wall installation only and rated by Underwriters Laboratories for 1.5 hour "B" label in walls. Listed below are standard sizes, other sizes are available.
Model No. Door Size H x W Opening H x W Stud Catches / Latches Price *
KRP-250FR-SS 8X8 8 3/8X8 3/8 1 $186.99
KRP-250FR-SS 12X12 12 3/8X12 3/8 1 $205.99
KRP-250FR-SS 18X18 18 3/8X18 3/8 1 $331.99
KRP-250FR-SS 24X24 24 3/8X24 3/8 1 $435.99

Click to enlarge
Click image to enlarge
Download the Submittal/Data sheet here

Download the Installation Instructions here

Request a Quote



Qty.

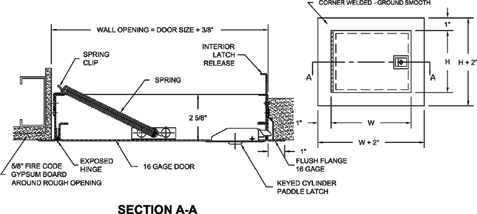

Specifications:
  • For Walls Only
  • For all surfaces
  • Frame and Trim: 16 gauge steel with corners welded and ground smooth with anchor straps.
    Trim is 1" wide.
  • Door: 16 gauge steel and opens to 175°. The door is self-latching with automatic closer and interior latch release.
  • Hinge: Continuous piano hinge.
  • Finish: #4 Satin Stainless Steel

Uninsulated Fire Rated Access Door
